Oil Pump: Disassembly

  1. Remove race from stator shaft. Remove "O" ring and oil seal rings from oil pump body and stator shaft. Remove clutch drum thrust washer from stator shaft.

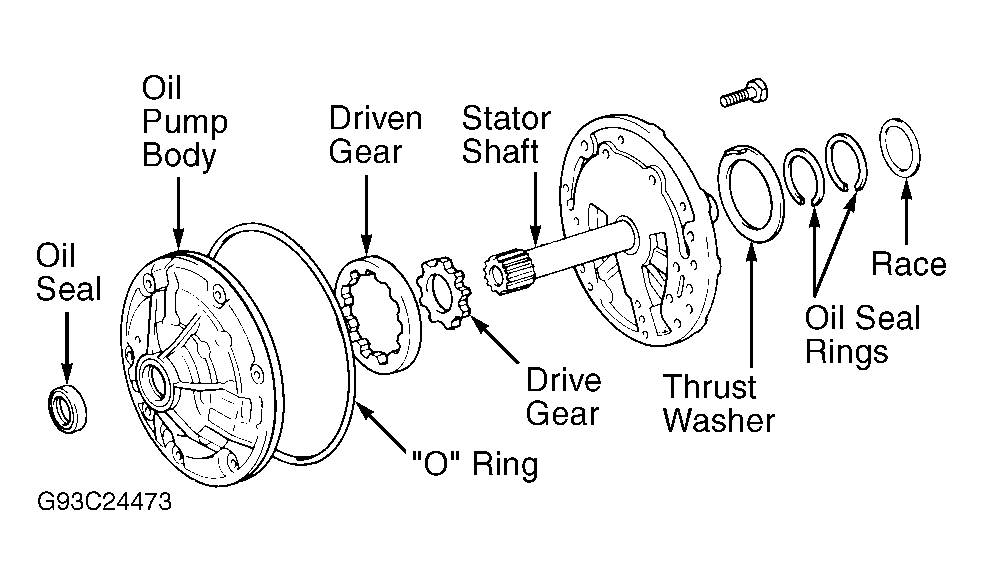

  2. Mark stator shaft and oil pump body for reassembly reference. Remove stator shaft bolts. Separate stator shaft and oil pump body. Mark gear location for reassembly reference. Remove pump gears. Using screwdriver, remove front seal. See Figure.
