Removal (Prizm GSi)

  1. Disconnect negative battery cable. Raise and support vehicle. Remove right lower engine cover. Remove accessory drive belts. Remove crankshaft pulley. See Fig 1 .
  2. Remove valve cover and windshield washer reservoir. Using Support Fixture (J028467-A), support engine. Remove through bolt at engine mount located near timing belt cover.
  3. Remove transaxle mounts-to-crossmember nuts. Raise engine slightly. Remove water pump pulley. Lower engine. Remove timing belt covers. If necessary, remove A/C compressor with hoses attached.
  4. Remove timing belt guide. Loosen idler pulley bolt. Move idler pulley away from timing belt and temporarily tighten idler pulley bolt. Remove timing belt.
    CAUTION: If timing belt is to be reused, mark direction of timing belt rotation, and place reference marks on timing belt and sprockets for installation reference.
  5. Remove camshaft sprockets (if necessary), by removing retaining bolt. If crankshaft sprocket is to be removed, use Puller (J-1859-03).

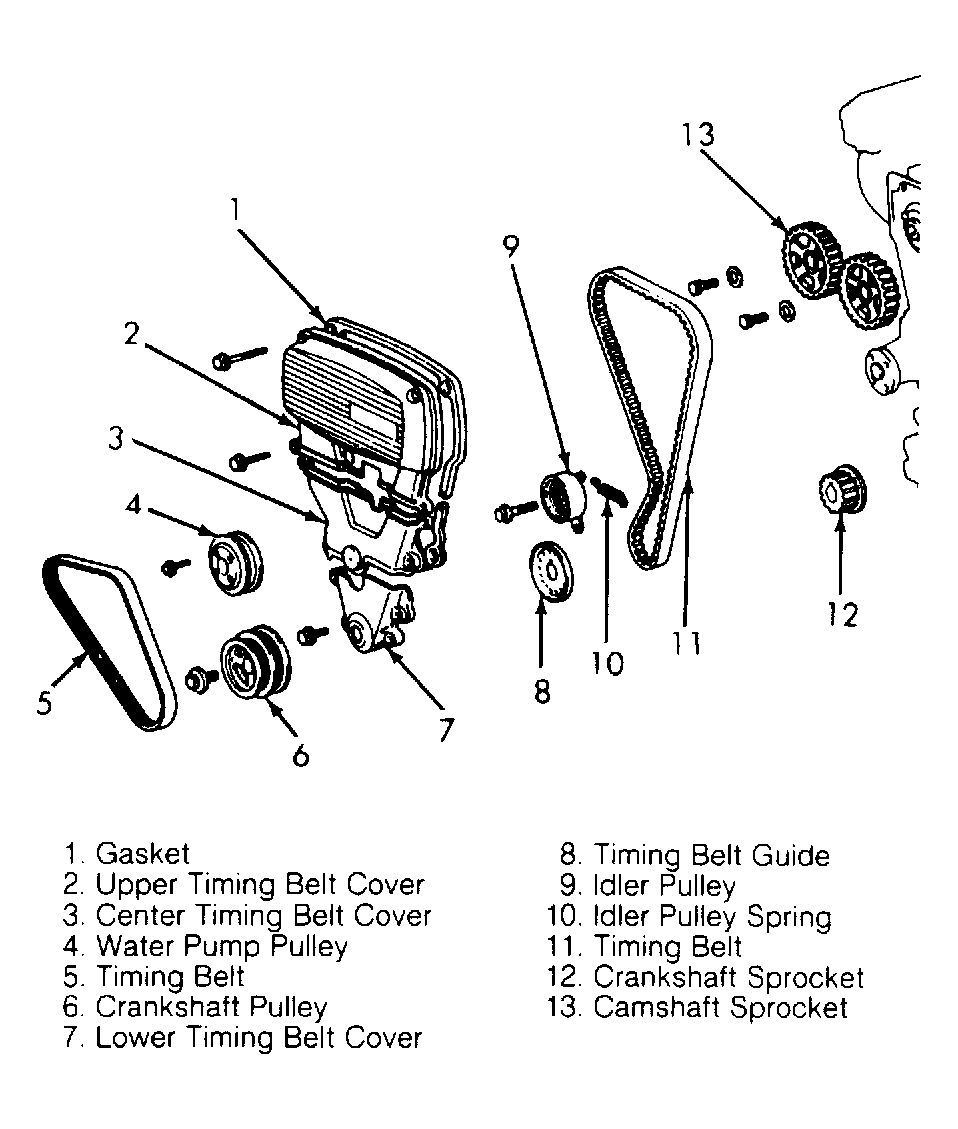

Fig 1: Exploded View of Timing Belt & Components (Prizm GSi)
G91D00417Courtesy of GENERAL MOTORS CORP.
