Suspension - Rear: Description

Strut-type rear suspension with independent coil spring and lower control arm is used. Control rods are included between rear knuckle and body to control lateral movement. See Fig 1.

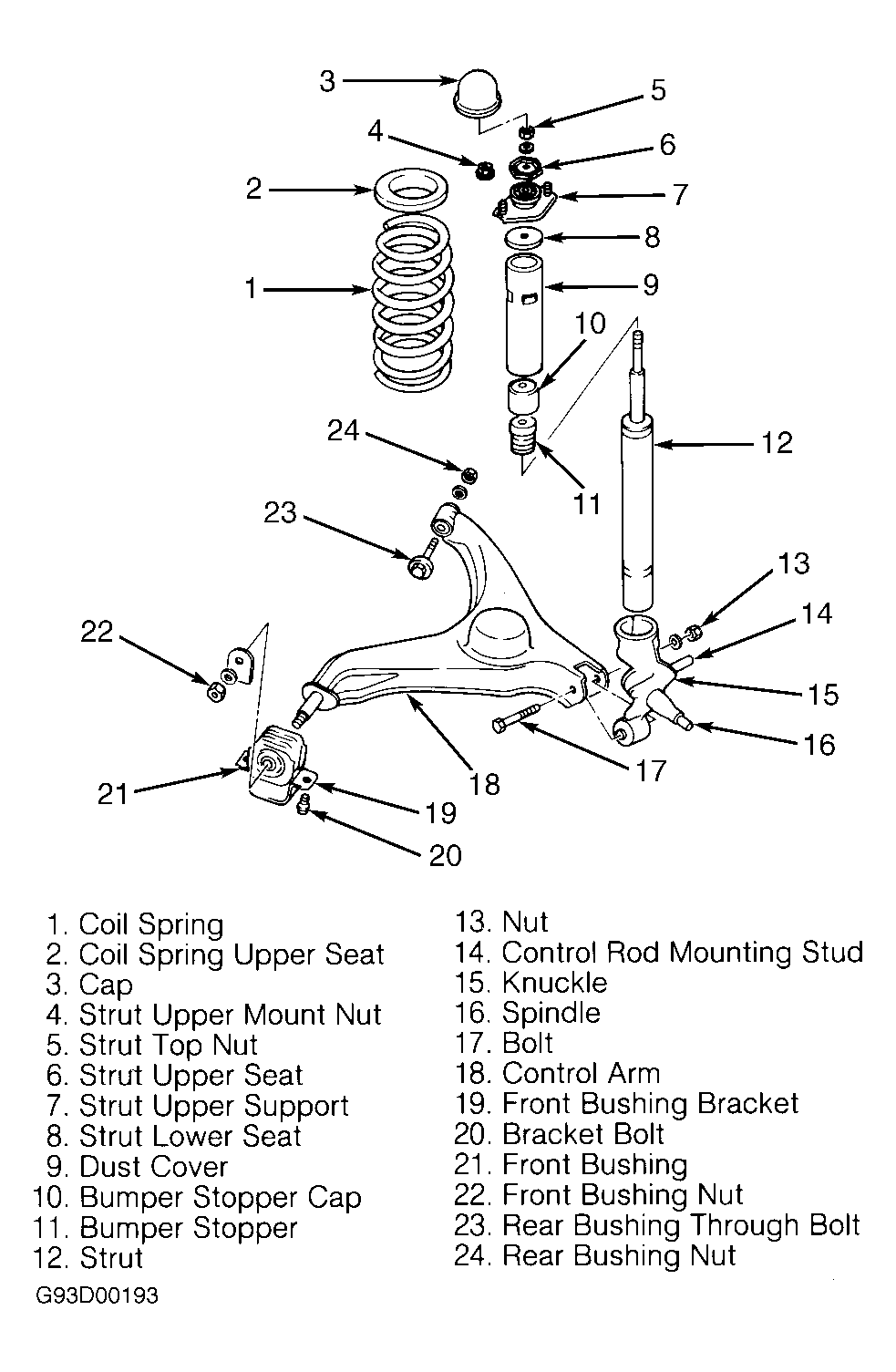

Fig 1: Exploded View Of Suspension Components

Courtesy of GENERAL MOTORS CORP.
