Rocker Arm Shafts: Removal

  1. Remove timing belt. See TIMING BELT in this article. Remove air cleaner assembly and valve cover.

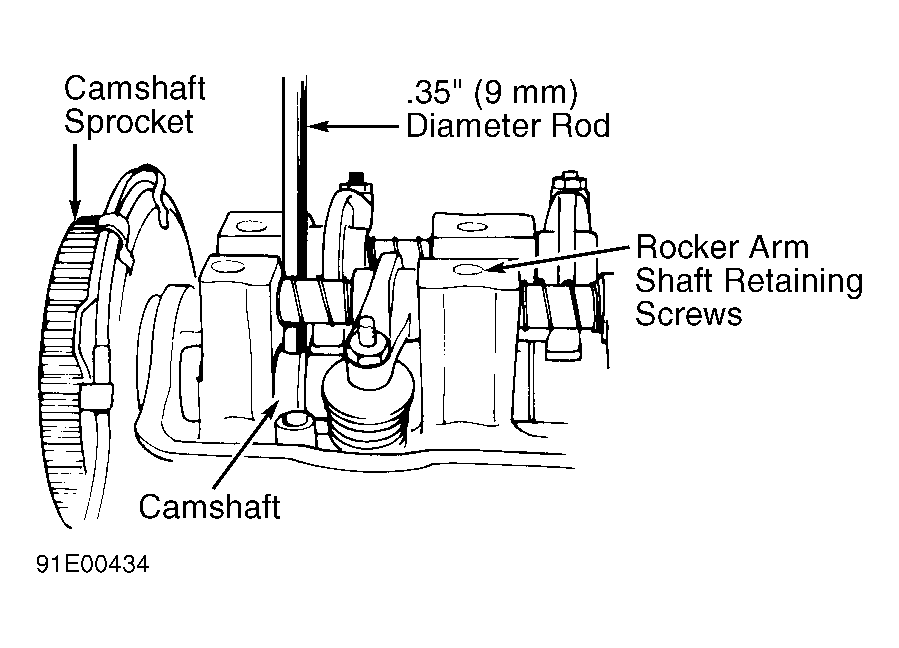

  2. Insert a .35" (8.9 mm) diameter rod in hole of camshaft to hold camshaft during camshaft sprocket removal. See Figure. Remove retaining bolt and camshaft sprocket.
  3. Fully loosen all valve adjusting screws. Remove rocker arm shaft retaining screws. See Figure. Note location of rocker arm components for reassembly reference. Remove rocker arms shafts and components.
