MASTER CYLINDER (PRIZM & PRIZM GSi): Reassembly

To reassemble, reverse disassembly procedure using new rubber parts. See Fig 1. Lubricate all components with clean brake fluid. Bench-bleed master cylinder before installing in vehicle. Bleed entire brake system after installation. See BRAKE BLEEDING PROCEDURE .

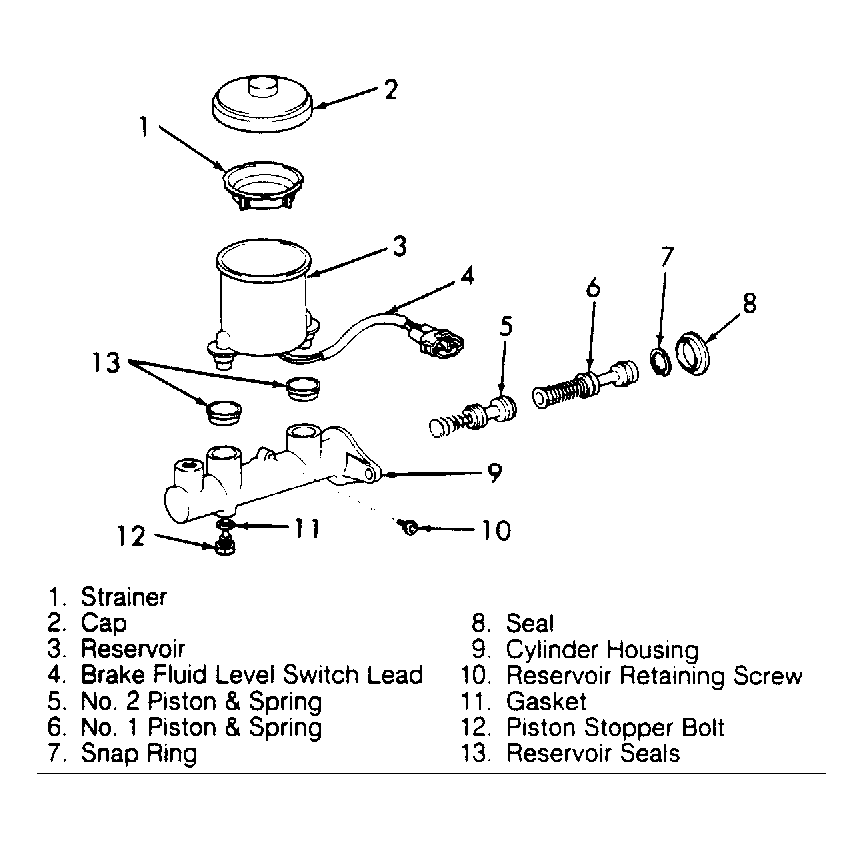

Fig 1: Exploded View of Master Cylinder (Prizm & Prizm GSi)

Courtesy of GENERAL MOTORS CORP.
