Front Disc Brake Caliper: Reassembly

To reassemble, reverse disassembly procedure. Lubricate piston seal, piston and caliper bore with brake fluid. On Metro, install dust boot with 3 grooved side facing outward. Position piston in caliper so it protrudes .4" (10 mm) out of cylinder end. On all models, install dust boot seal ring. See Fig 1 through Fig 4 .

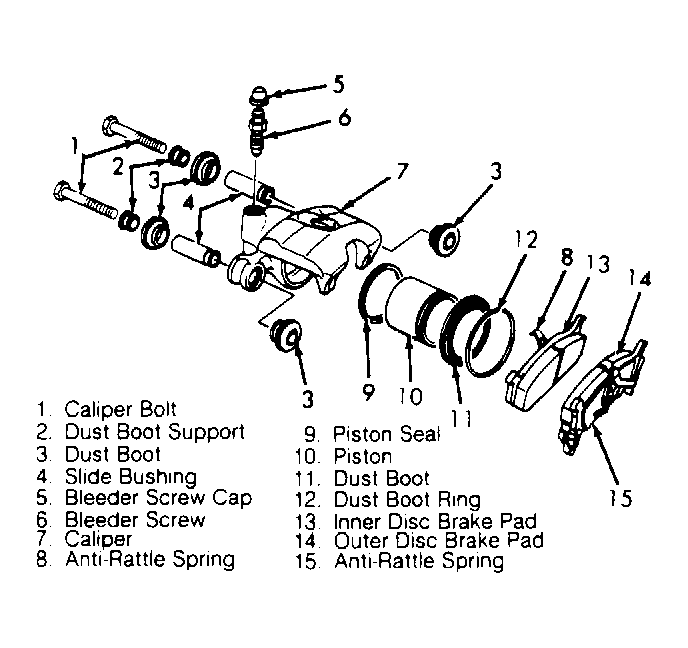

Fig 1: Exploded View of Front Disc Brake Caliper (Metro)

Courtesy of GENERAL MOTORS CORP.

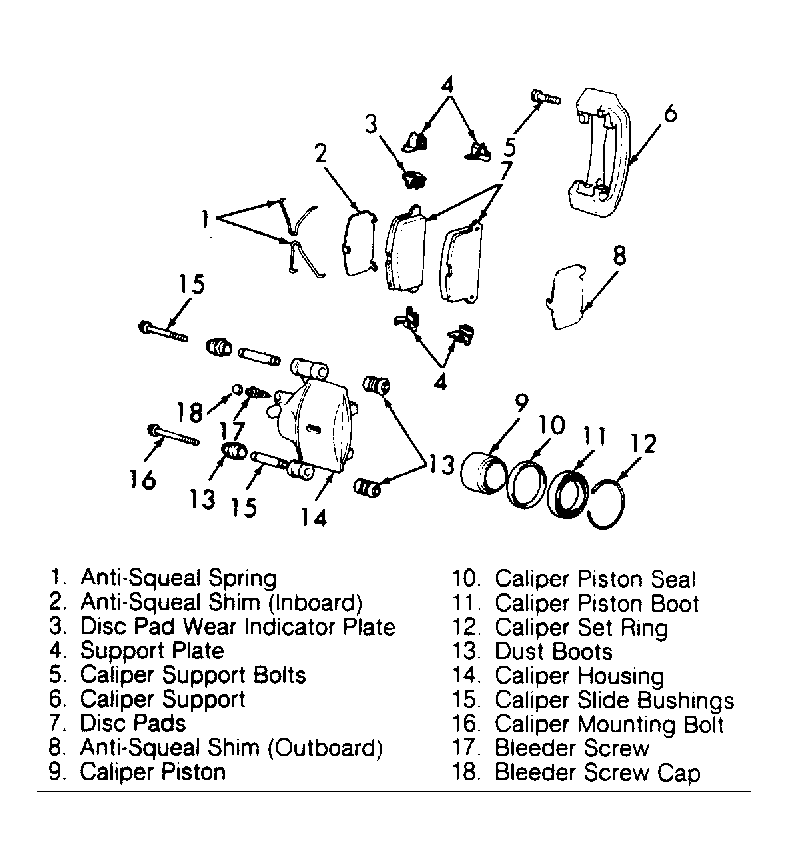

Fig 2: Exploded View of Front Disc Brake Caliper (Prizm & Prizm GSi)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Exploded View of Front Disc Brake Caliper (Storm & Storm GSi)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Exploded View of Front Disc Brake Caliper (Tracker)

Courtesy of GENERAL MOTORS CORP.
