Cylinder Head: Installation
WARNING: This page is about a different car, the 1988 Chevrolet Sprint. However, it is still accessible from the selected car via links, so may be relevant.

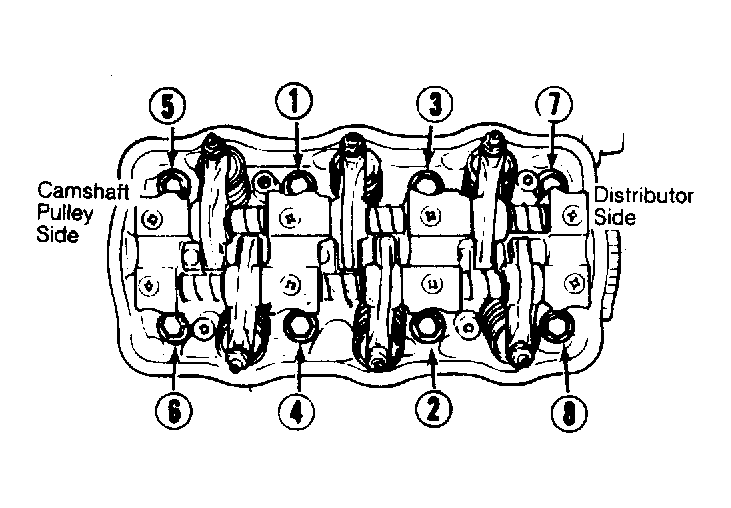

- Position cylinder head gasket with "TOP" mark facing up and toward crankshaft pulley side of cylinder block. Position cylinder head on gasket and tighten cylinder head retaining bolts in sequence. See Fig 1.
- Install camshaft and timing belt. See TIMING BELT in this article. To complete installation, reverse removal procedure. Adjust valve clearance and check all engine fluids. Refer to VALVE CLEARANCE ADJUSTMENT in this article.
