Instrument Cluster: Spectrum

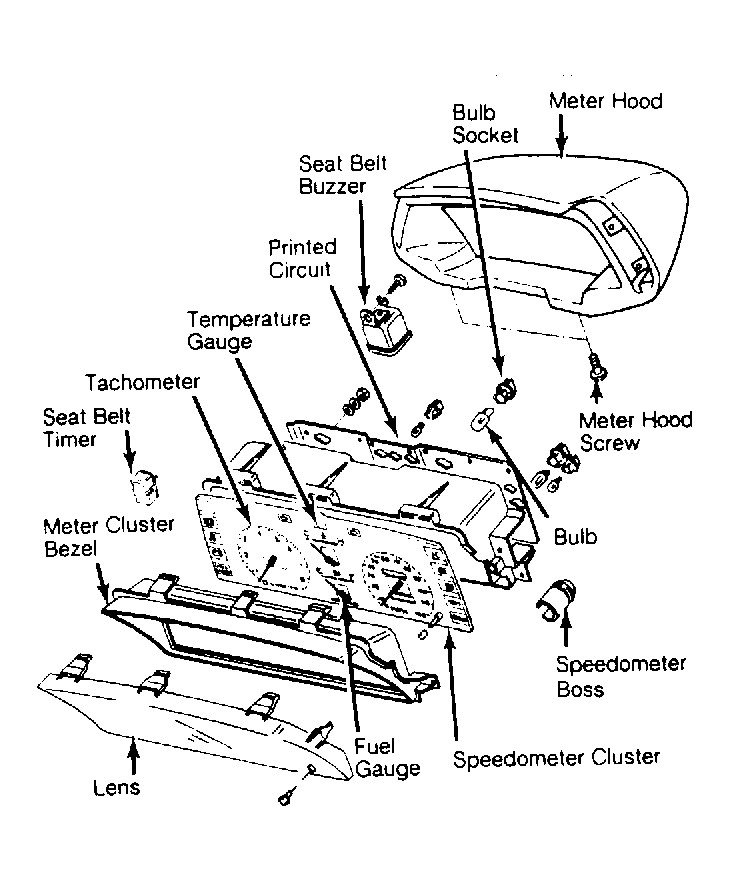

Disconnect negative battery cable. Remove instrument cluster bezel, loosen meter hood and disconnect wiper switch and lighting switch. Remove meter hood. Remove instrument cluster mounting screws and disconnect electrical connectors. Remove instrument cluster assembly. To install, reverse removal procedure. See Fig 1 .
