With Tachometer

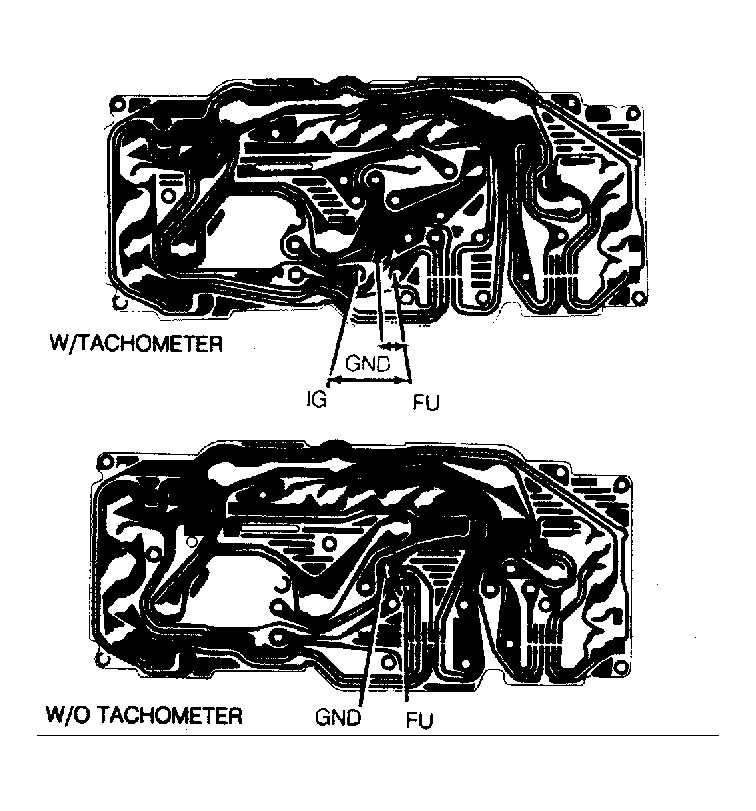

Remove instrument cluster. Measure resistance between "IG" and "FU" terminals. Resistance should be about 102.7 ohms. Measure resistance between "FU" and "GND" terminals. Resistance should be about 64.5 ohms. See Figure .
Remove instrument cluster. Measure resistance between "IG" and "FU" terminals. Resistance should be about 102.7 ohms. Measure resistance between "FU" and "GND" terminals. Resistance should be about 64.5 ohms. See Figure .
