California Emissions

Vacuum Hose Routing (California):

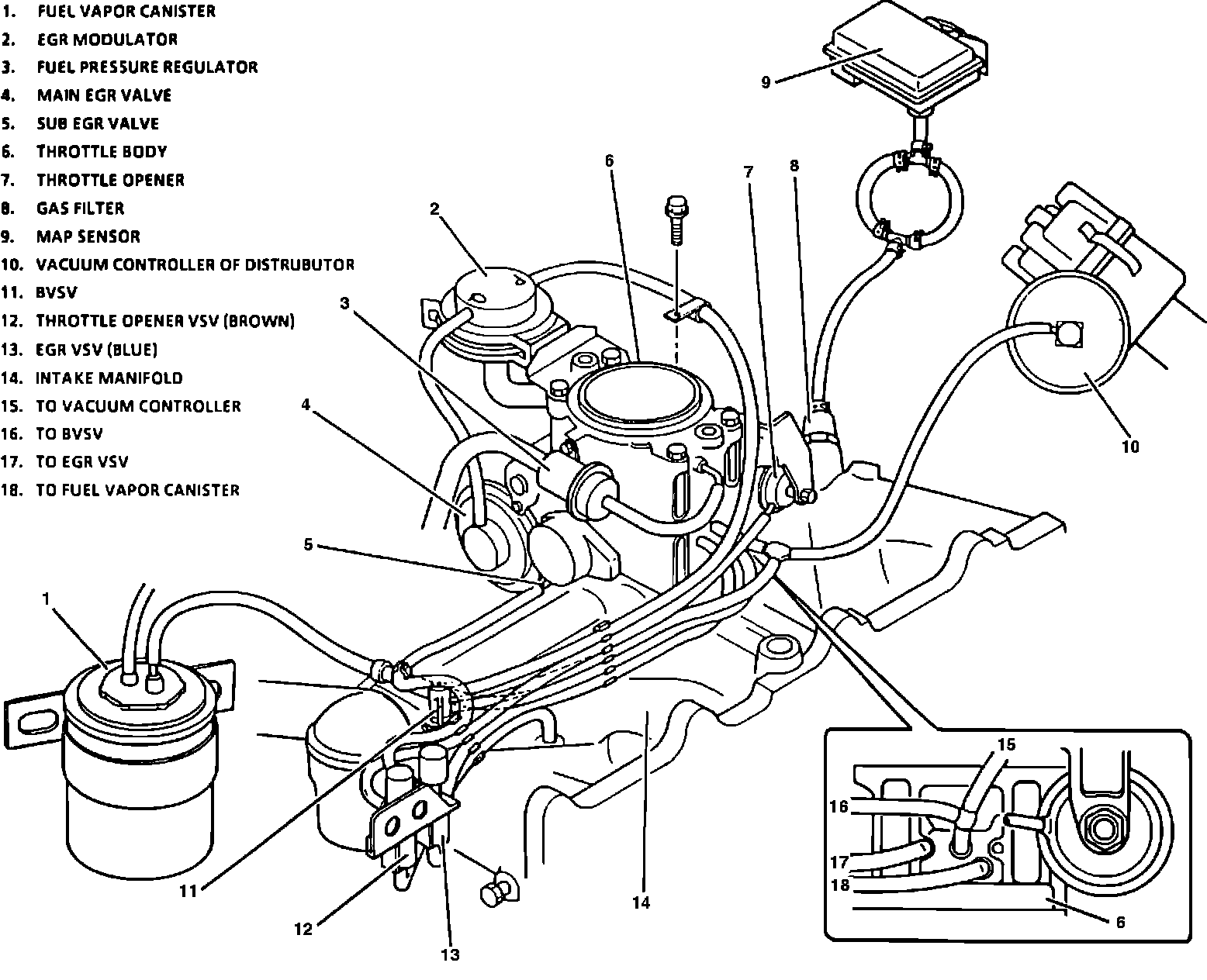

Vacuum Hose Routing And Component Views:

1 = FUEL VAPOR CANISTER
2 = EGR MODULATOR
3 = FUEL PRESSURE REGULATOR
4 = MAIN EGR VALVE
5 = SUB EGR VALVE
6 = THROTTLE BODY
7 = THROTTLE OPENER
8 = GAS FILTER
9 = MAP SENSOR
10 = VACUUM CONTROLLER OF DISTRIBUTOR
11 = BVSV
12 = THROTTLE OPENER VSV (BROWN)
13 = EGR VSV (BLUE)
14 = INTAKE MANIFOLD
15 = TO VACUUM CONTROLLER
16 = TO BVSV
17 = TO EGR VSV
18 = TO FUEL VAPOR CANISTER
