Steering Column: Testing and Inspection

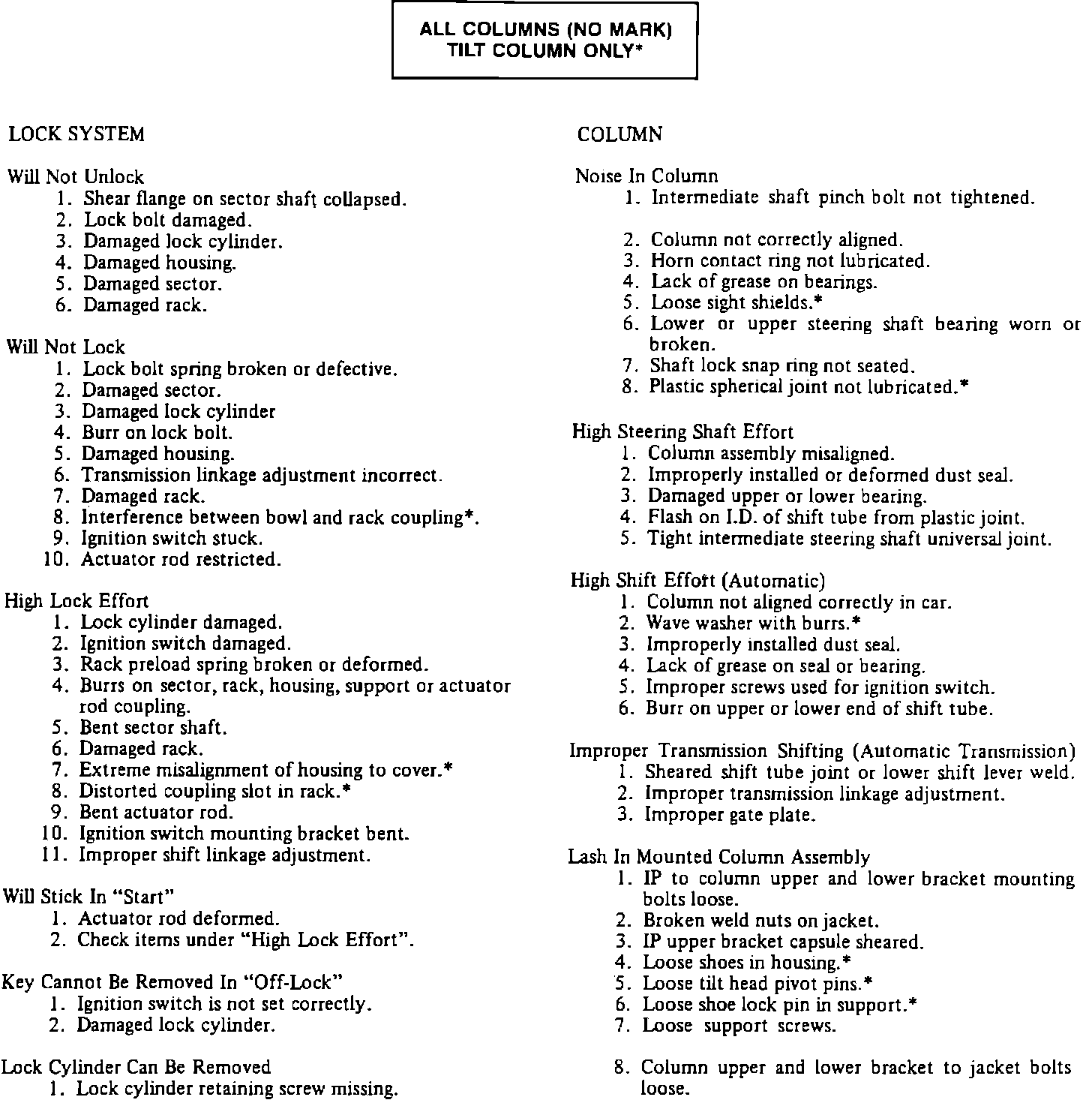

Fig. 1 Steering Column Troubleshooting:

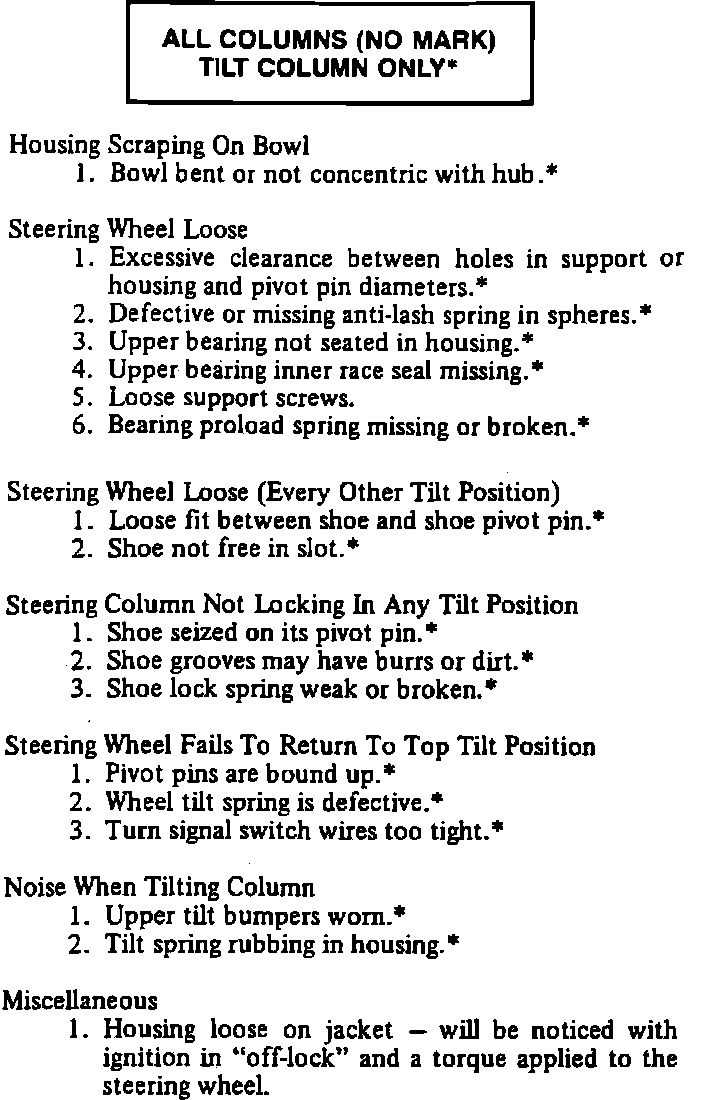

Fig. 2 Steering Column Troubleshooting:






When troubleshooting steering columns, refer to Figs. 1 and 2.
