Disc Brake Rotor & Hub (Metro): Removal

  1. Remove caliper and pads. Remove cotter pin, castle nut and washer from end of drive axle. Measure distance between outside rotor face and outside edge of caliper mounting bracket. See Fig 1.
    Fig 1: Measuring Metro Rotor Position Before Removal
    G100287Courtesy of GENERAL MOTORS CORP.
  2. Record dimension "A" for reassembly. Using slide hammer and adapter, remove wheel hub and rotor as an assembly. Remove rotor retaining bolts from hub and separate hub from rotor. See Fig 2.

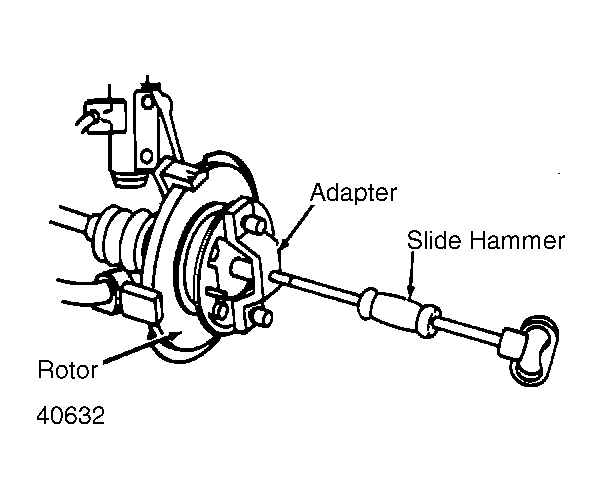

Fig 2: Removing Metro Hub & Rotor Assembly
G40632Courtesy of GENERAL MOTORS CORP.
