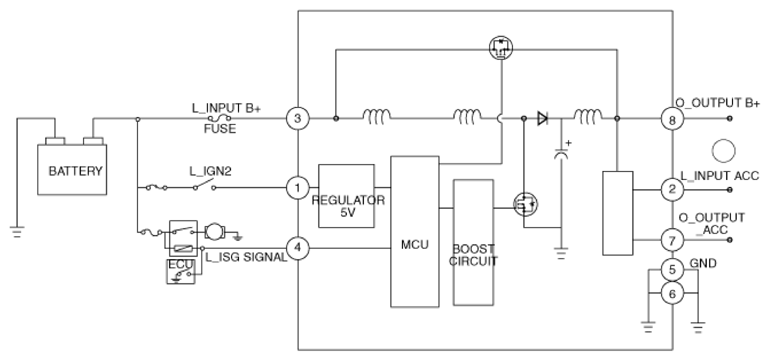

Circuit Diagram: [450W]

WARNING: This page is about a different variant/trim than selected.
G16769633Courtesy of HYUNDAI MOTOR AMERICA
