Repair Procedures: Removal: [400W]
WARNING: This page is about a different variant/trim than selected.
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the luggage side trim [LH].
(Refer to Body - "TRUNK TRIM ")

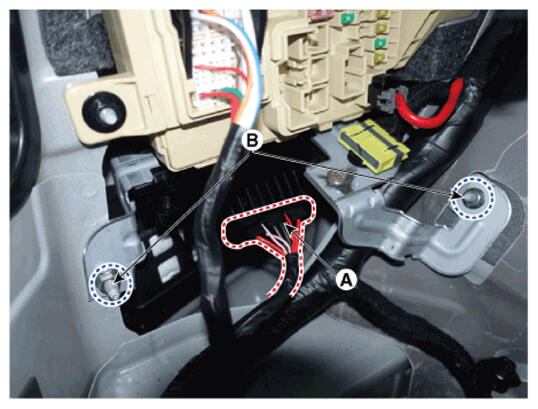

- Disconnect the DC DC converter connector (A).
- Loosen the DC DC converter mounting nut (B) and then remove the DC DC converter.
