Repair Procedures: Removal: [200W]
WARNING: This page is about a different variant/trim than selected.
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the IBU.
(Refer to Body Electrical System - "INTEGRATED BODY CONTROL (IBU) ")
- Remove the main crashpad assembly.
(Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

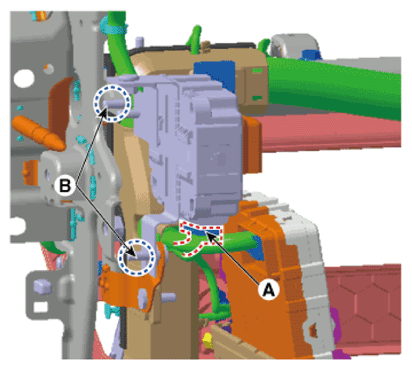

- Disconnect the DC DC converter connector (A).
- Loosen the DC DC converter mounting nut (B) and then remove the DC DC converter.
