[Water cooled intercooler radiator]

WARNING: This page is about a different variant/trim than selected.

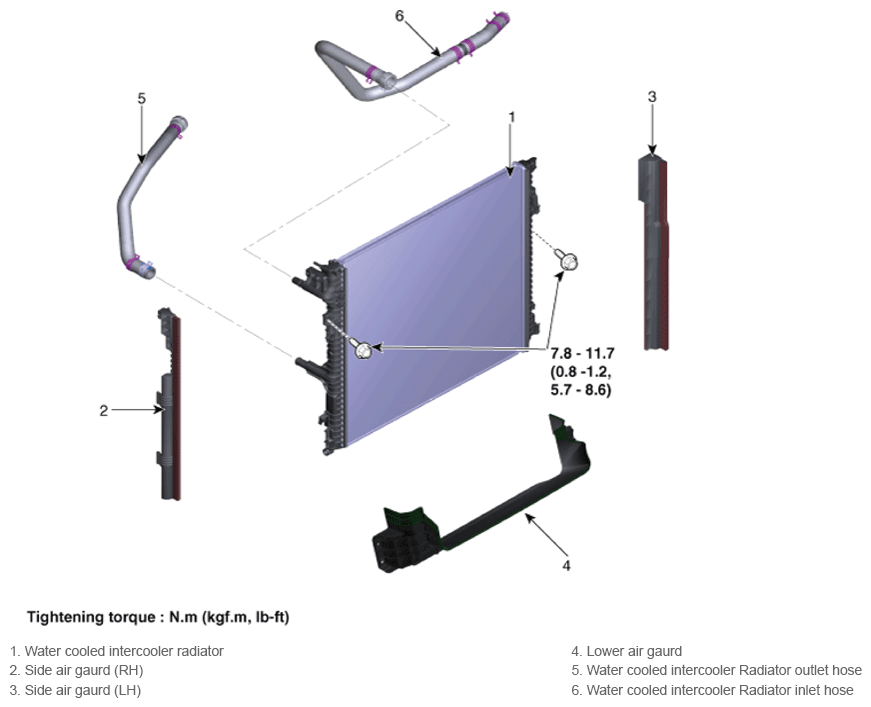

Fig 1: Water Cooled Intercooler Radiator Components Location With Torque Specification
G16769415Courtesy of HYUNDAI MOTOR AMERICA
