Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

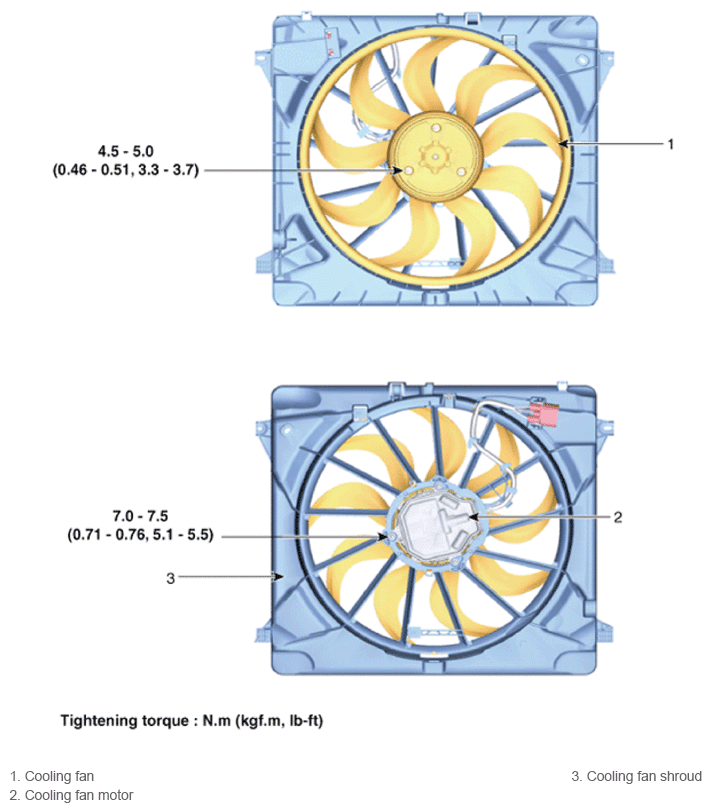

Fig 1: Cooling Fan Components Location With Torque Specification
G16769402Courtesy of HYUNDAI MOTOR AMERICA
