Components And Components Location: Components: [AWD]

WARNING: This page is about a different variant/trim than selected.

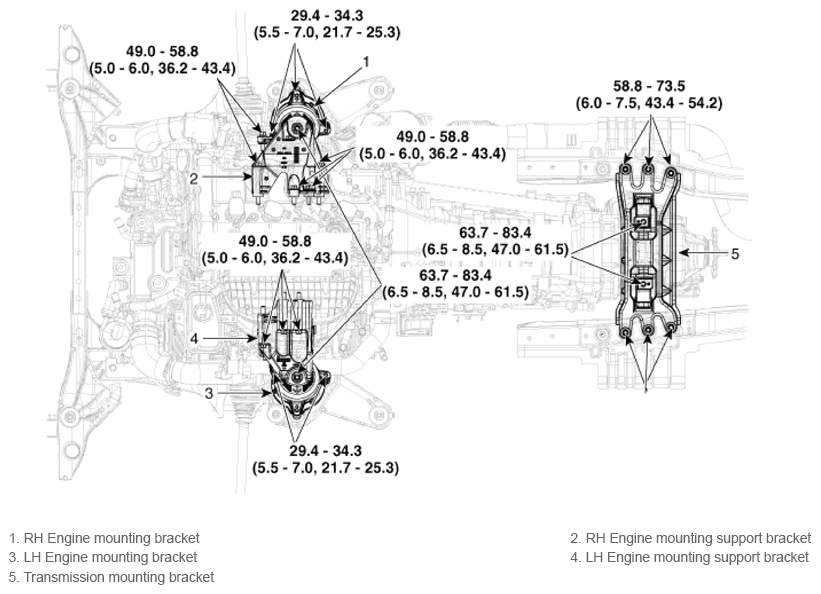

Fig 1: Engine Mounting Components Location With Torque Specification (AWD)
G16769157Courtesy of HYUNDAI MOTOR AMERICA
