Components And Components Location: Components: [2WD]

WARNING: This page is about a different variant/trim than selected.

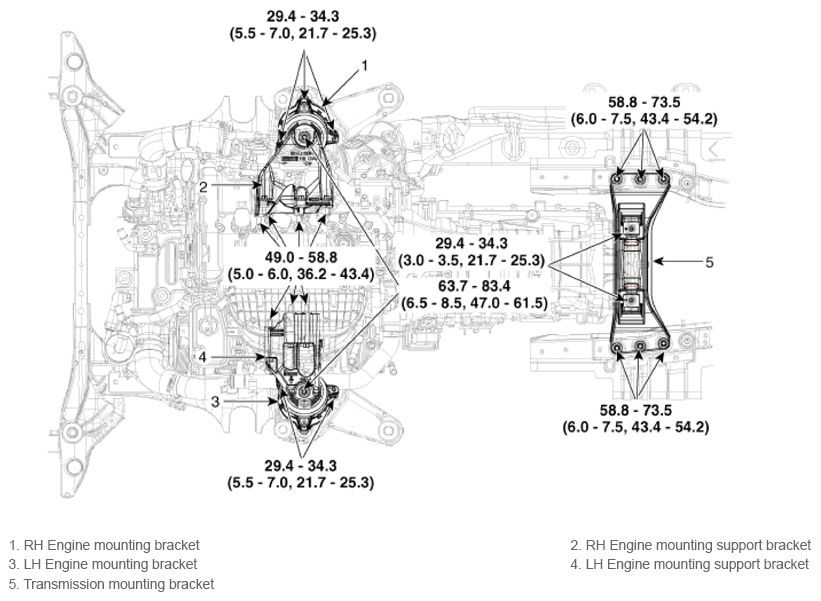

Fig 1: Engine Mounting Components Location With Torque Specification (2WD)
G16769156Courtesy of HYUNDAI MOTOR AMERICA
