Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Be careful not to damage the parts located under the vehicle (floor under cover, fuel filter, fuel tank and canister) when raising the vehicle using the lift.

    (Refer to General Information - "LIFT AND SUPPORT POINTS ")

NOTE:
  • Use fender covers to avoid damaging painted surfaces.
  • To avoid damage, unplug the wiring connectors carefully while holding the connector portion.

Information

  1. Disconnect the battery negative terminal.
  2. Remove the engine cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE COVER ")

  3. Remove the air duct.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

  4. Remove the air cleaner assembly.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

  5. Remove the engine under cover.

    (Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")

  6. Drain the engine coolant.

    (Refer to Cooling System - "COOLANT ")

  7. Recover the refrigerant and then remove the high pressure pipe and low pressure pipe.

    (Refer to Heating, Ventilation Air conditioning - "REPAIR PROCEDURES ")

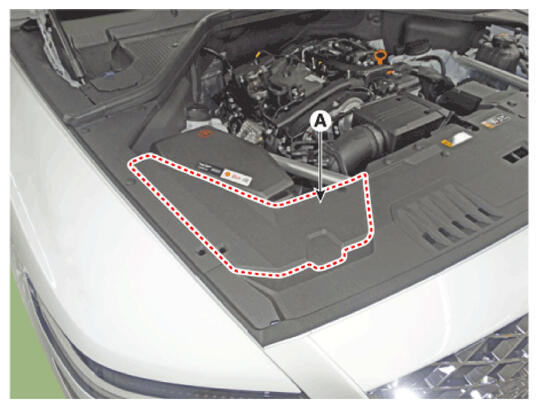

  8. Remove the engine room side cover (A).

    [RH]

    G16769165Courtesy of HYUNDAI MOTOR AMERICA

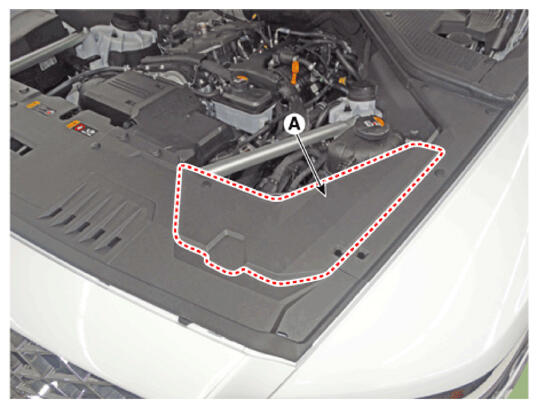

    [LH]

    G16769166Courtesy of HYUNDAI MOTOR AMERICA

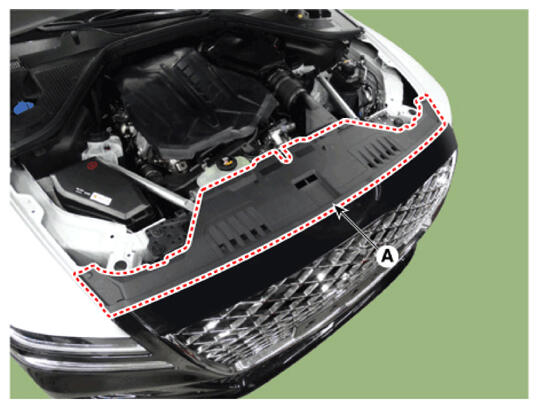

  9. Remove the engine room cover (A).
    G16769167Courtesy of HYUNDAI MOTOR AMERICA

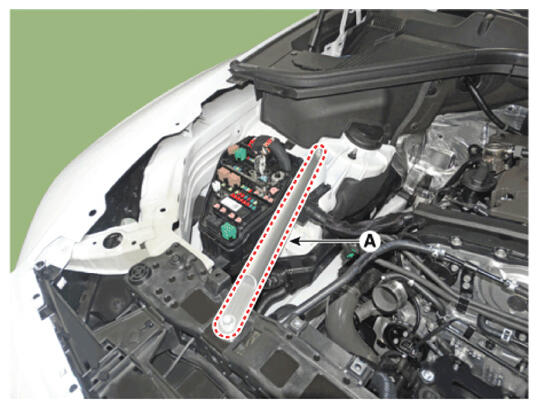

  10. Remove the RH stut bar (A).
    G16769168Courtesy of HYUNDAI MOTOR AMERICA

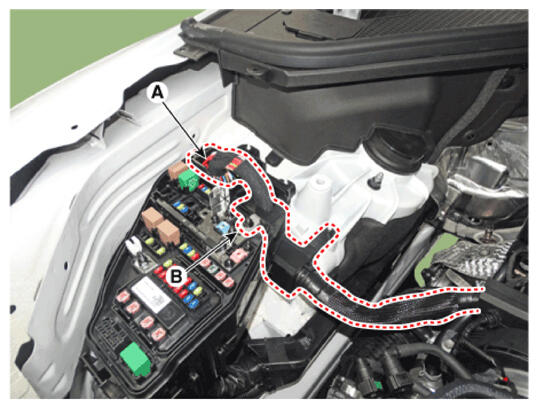

  11. Disconnect the first box connector (A) and then remove the main wiring protector (B).
    G16769169Courtesy of HYUNDAI MOTOR AMERICA

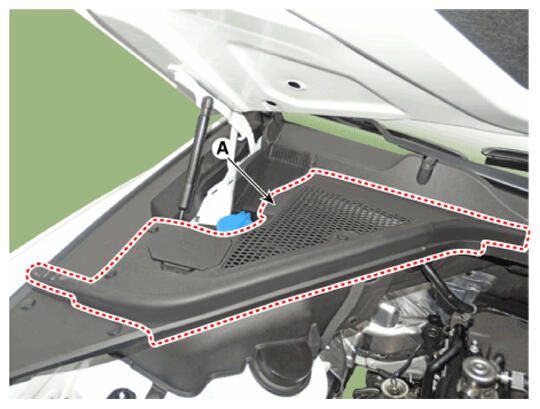

  12. Remove the rear engine cover (A).
    G16769170Courtesy of HYUNDAI MOTOR AMERICA

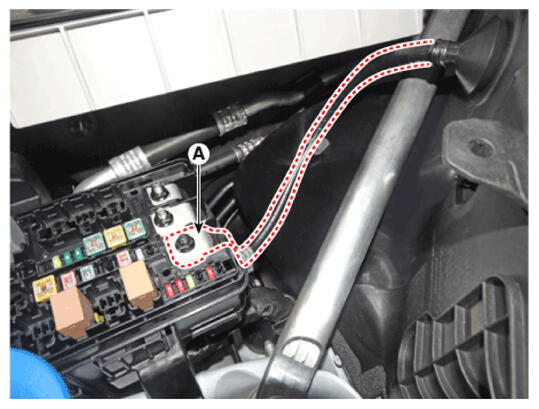

  13. Remove the wiring (A) from fuse box.
    G16769171Courtesy of HYUNDAI MOTOR AMERICA

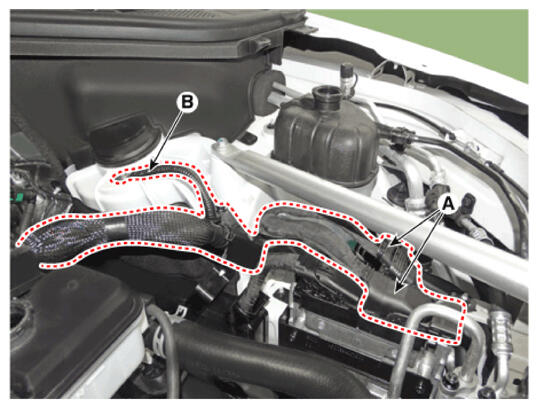

  14. Remove the ECM connectors (A) and ground cable (B).
    G16769172Courtesy of HYUNDAI MOTOR AMERICA

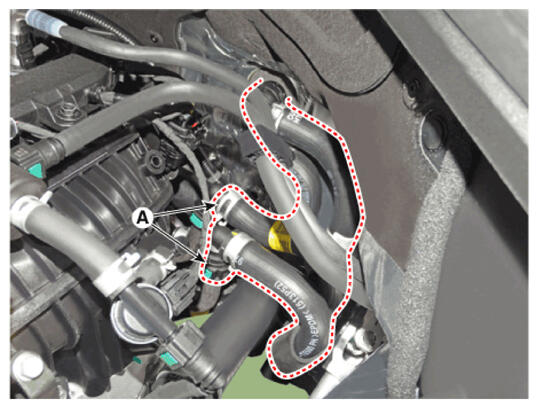

  15. Disconnect the heater hoses (A).
    G16769173Courtesy of HYUNDAI MOTOR AMERICA

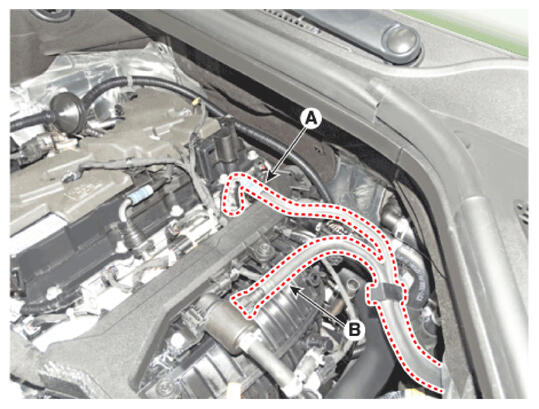

  16. Disconnect the fuel hose (A) and PCSV hose (B).
    G16769174Courtesy of HYUNDAI MOTOR AMERICA

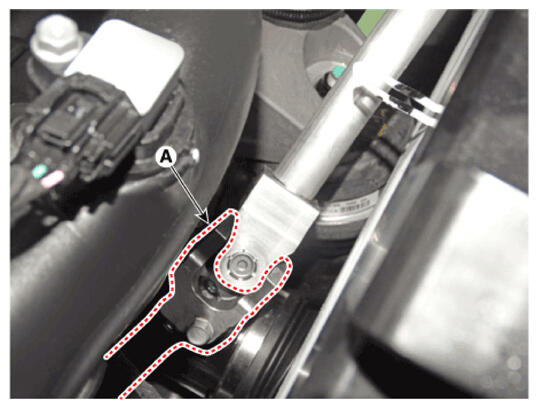

  17. Remove the steering U - joint mounting bolt.
    G16769175Courtesy of HYUNDAI MOTOR AMERICA

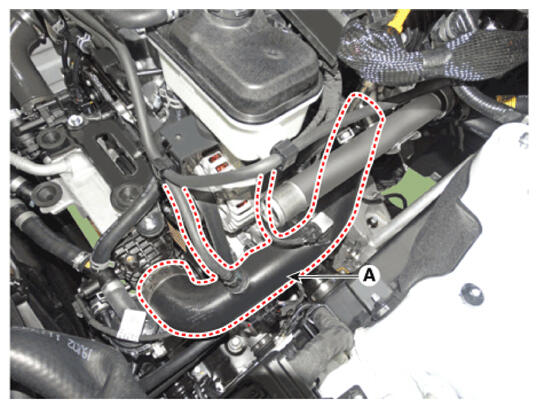

  18. Remove the water cooled intercooler outlet hose (A).
    G16769176Courtesy of HYUNDAI MOTOR AMERICA

    Information

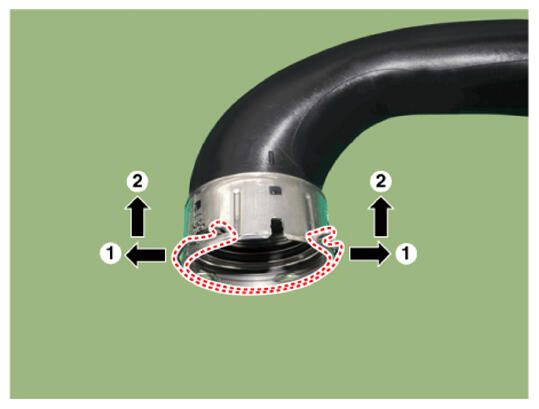

    • When disconnecting the intercooler hose, pull the quick connector clamp (A) in the direction of the arrow, as shown in the below illustration.
    G16769177Courtesy of HYUNDAI MOTOR AMERICA

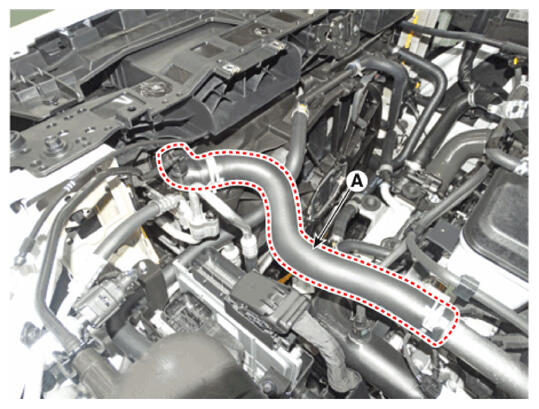

  19. Disconnect the radiator upper hose (A).
    G16769178Courtesy of HYUNDAI MOTOR AMERICA

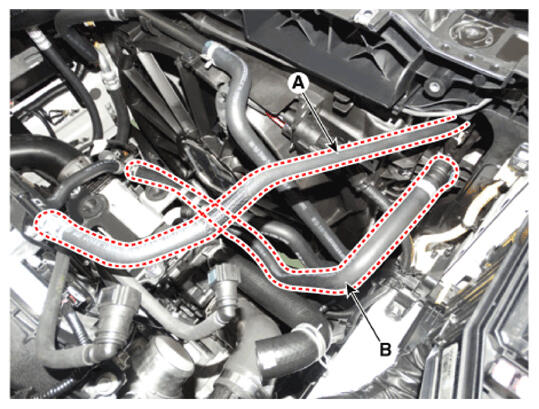

  20. Disconnect the water cooled intercooler reservoir tank over flow hose (A) and inlet hose (B).
    G16769179Courtesy of HYUNDAI MOTOR AMERICA

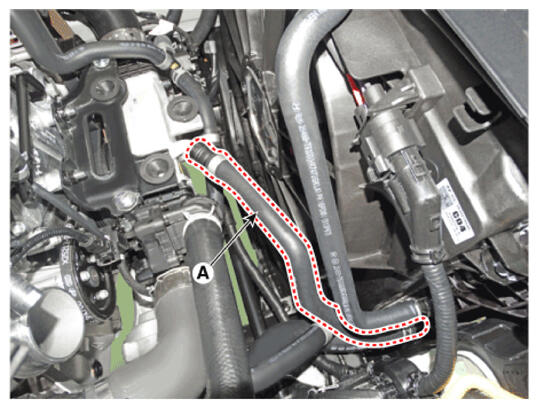

  21. Disconnect the water cooled intercooler out let hose (A).
    G16769180Courtesy of HYUNDAI MOTOR AMERICA

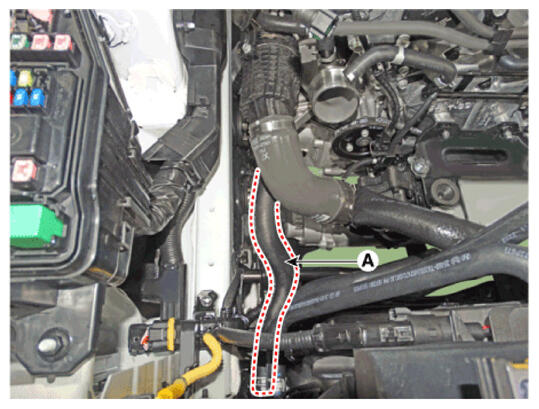

  22. Disconnect the radiator lower hose (A).
    G16769181Courtesy of HYUNDAI MOTOR AMERICA

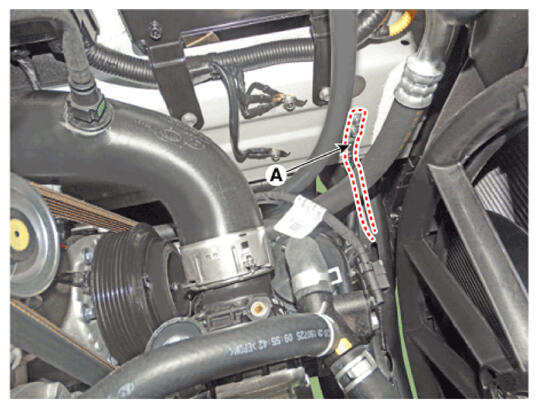

  23. Remove the engine ground cable (A).
    G16769182Courtesy of HYUNDAI MOTOR AMERICA
  24. Remove the tie rod end ball joint from the knuckle.

    (Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

  25. Remove the tension arm.

    (Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

  26. Remove the lateral arm mounting bolt from the knuckle.

    (Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

  27. Remove the propeller shaft mounting bolt and nut and then separate the propeller shaft from the transfer assembly.

    (Refer to Driveshaft and Axle - "PROPELLER SHAFT ")

  28. Remove the front driveshaft.

    (Refer to Driveshaft and Axle - "FRONT DRIVESHAFT ")

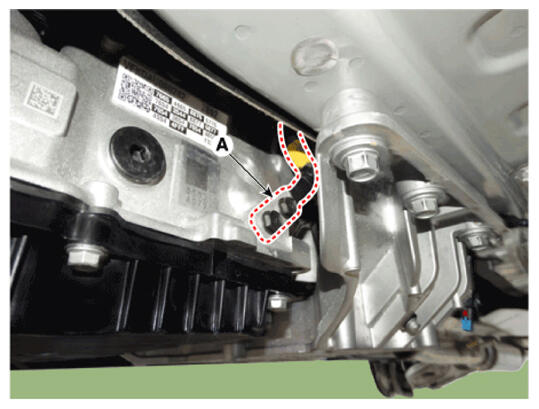

  29. Remove the transmission ground cable (A).
    G16769183Courtesy of HYUNDAI MOTOR AMERICA

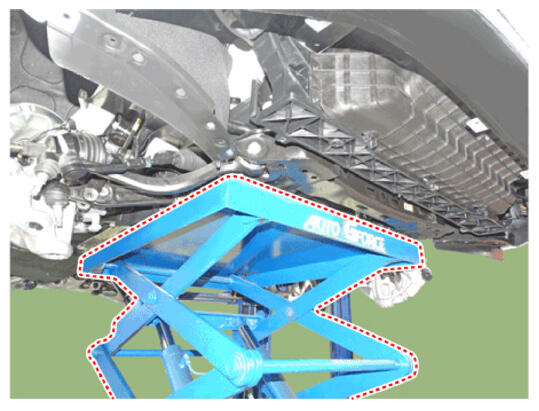

  30. Support the engine and transmission assembly with a floor jack.
    G16769184Courtesy of HYUNDAI MOTOR AMERICA

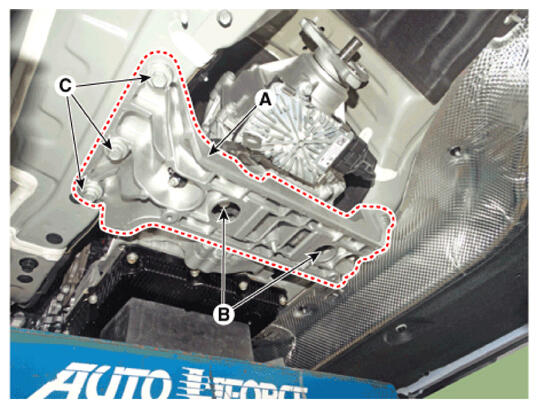

  31. Remove the transmission mounting assembly (A).

    Tightening torque:

    Bolts, Nuts (B):

    2WD (Nuts): 29.4 - 34.3 N.m (3.0 - 3.5 kgf.m, 21.7 - 25.3 lb-ft)

    AWD (Bolts): 63.7 - 83.4 N.m (6.5 - 8.5 kgf.m, 47.0 - 61.5 lb-ft)

    Bolts (C):

    58.8 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb-ft)

    G16769185Courtesy of HYUNDAI MOTOR AMERICA

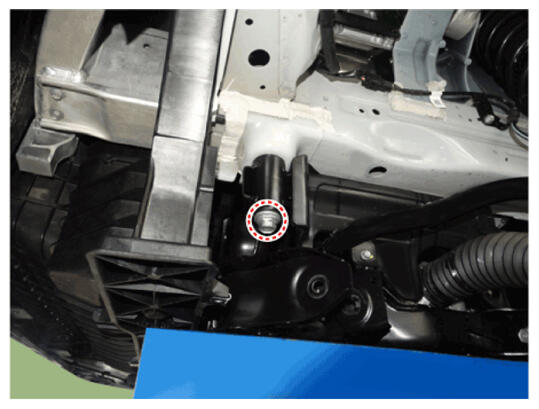

  32. Remove the front cross member mounting bolts (A).

    Tightening torque:

    196.1 - 215.7 N.m (20.0 - 22.0 kgf.m, 144.7 - 159.1 lb-ft)

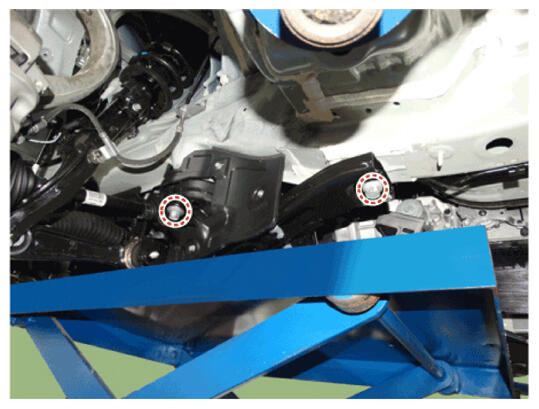

    G16769186Courtesy of HYUNDAI MOTOR AMERICA
    G16769187Courtesy of HYUNDAI MOTOR AMERICA

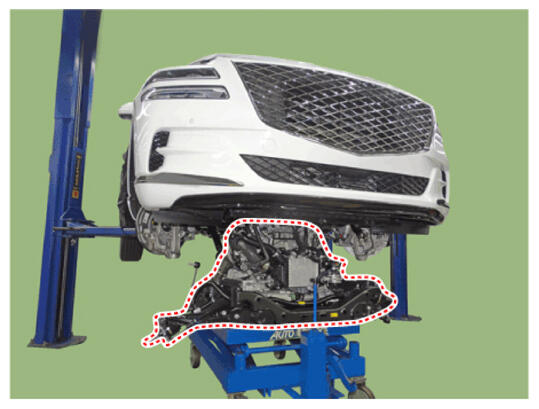

  33. Support the engine and transmission assembly with a floor jack.
    G16769188Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Before removing the engine and transmission assembly, make sure hoses and wire connectors are disconnected.
    • When removing the engine and transmission assembly, be careful not to damage any surrounding parts or body components.
  34. Remove the transmission assembly from the engine assembly.

    (Refer to Automatic Transmission System - "REPAIR PROCEDURES ")

  35. Remove the engine mounting support bracket mounting nut and then remove the engine assembly form the front cross member by lifting up the engine hoist.
