Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.

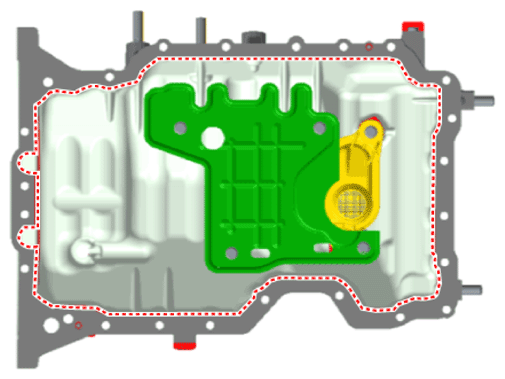

- Apply liquid gasket evenly to the mating surface of the oil pan.NOTE:
- Standard liquid gasket: MS721-40 AAO or AA
- Check that the mating surfaces are clean and dry before applying liquid gasket.
- Apply liquid gasket in a 4 mm (0.16 in) (5 mm (0.2 in) or above for T-joint and 3.5 mm (0.14 in) for rear oil seal) wide bead without stopping.
- Install the oil pan in 5 minutes after applying the liquid gasket.
- After installing the oil pan, wait at least 30 minutes before filling the engine with oil.
- Remove liquid gasket overreached from the rear oil seal area after installing.
- Remove liquid gasket overreached from the contact surface between the cylinder bock and timing chain cover before installing the upper oil pan.
- Install the oil pan.

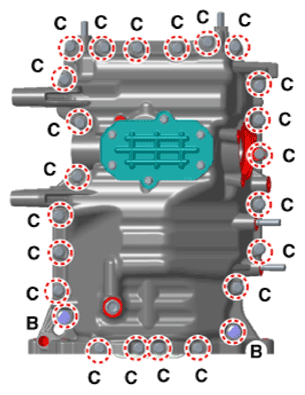

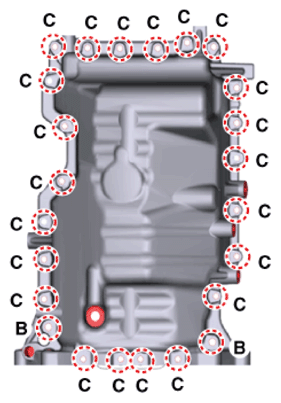

- Fasten the bolts in the sequence shown.
Tightening torque:
bolts (B): 26.5 - 30.4 N.m (2.7 - 3.1 kgf.m, 19.5 - 22.4 lb-ft)
bolts (C): 19.6 - 23.5 N.m (2.0 - 2.4 kgf.m, 14.5 - 17.4 lb-ft)
[AWD]
[2WD]

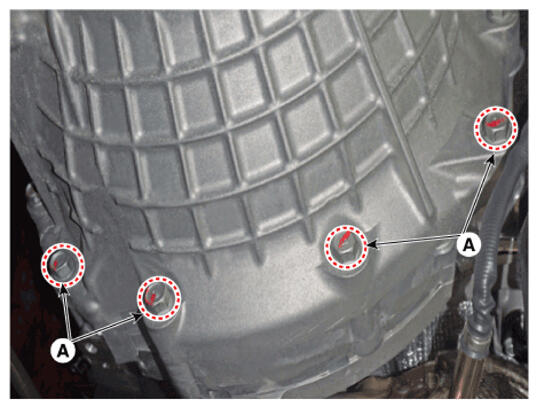

- Install the transmission lower mounting bolts (A).
Tightening torque:
39.2 - 46.1 N.m (4.0 - 4.7 kgf.m, 28.9 - 34.0 lb-ft)
- Fasten the bolts in the sequence shown.
- Install the other parts in the reverse order of removal.
- Refill with the engine oil.
(Refer to Lubrication System - "ENGINE OIL ")
- Fill the radiator with coolant.
(Refer to Cooling System - "COOLANT ")
