Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

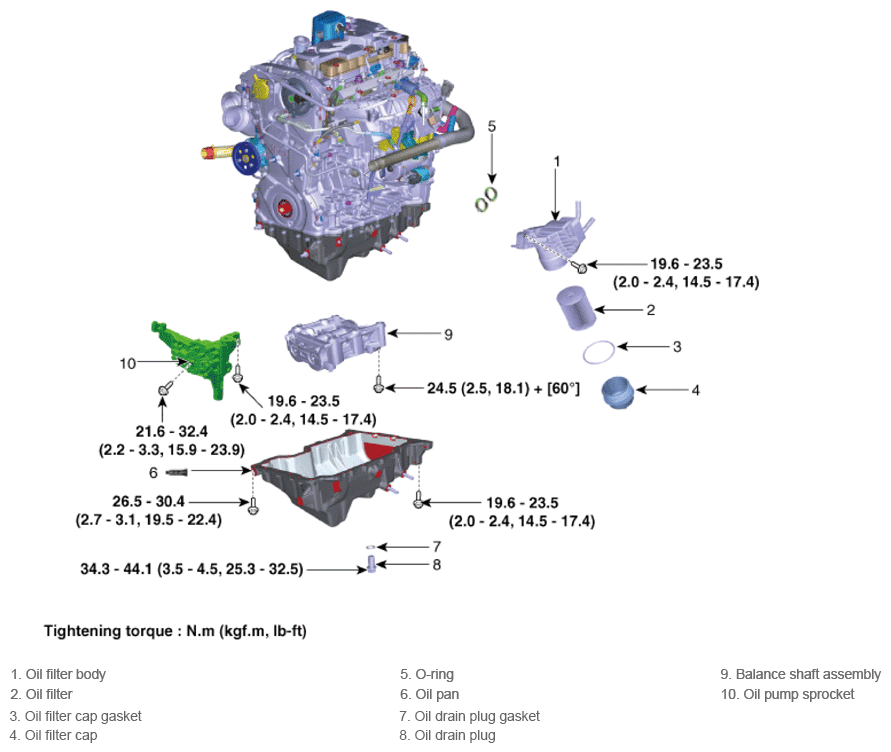

Fig 1: Lubrication System Components Location With Torque Specification
G16769458Courtesy of HYUNDAI MOTOR AMERICA
