Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the rear propeller shaft.
(Refer to Driveshaft and axle - "PROPELLER SHAFT ")
- Loosen the bolts (A) and nuts (B) and then removing the transmission bracket (C).

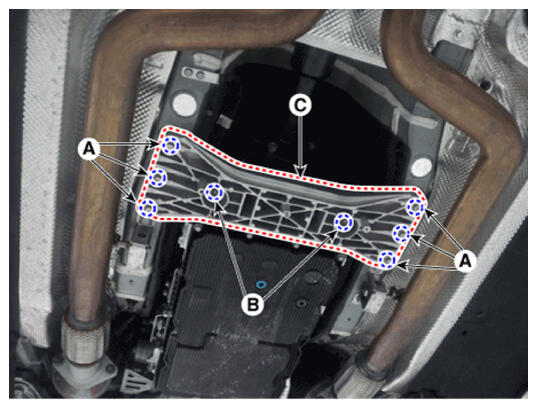

[2WD]

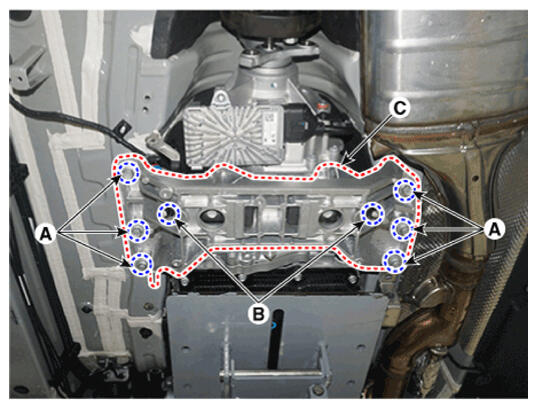

[4WD]
NOTE:- support the transmission solenoid valve body cover using a jack.

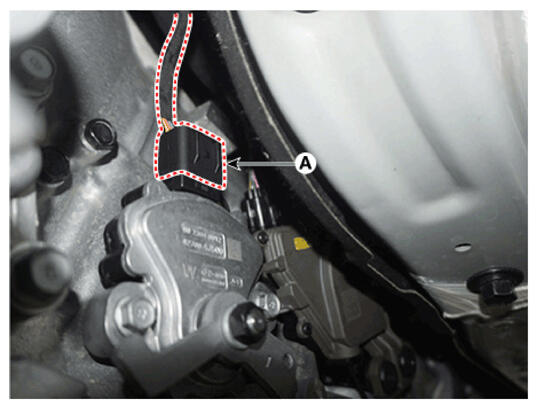

- Disconnect the parking switch connector (A).

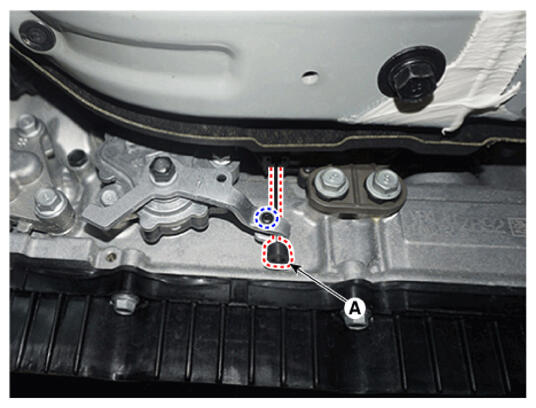

- Loosen the fastener and then separate the parking release cable (A).

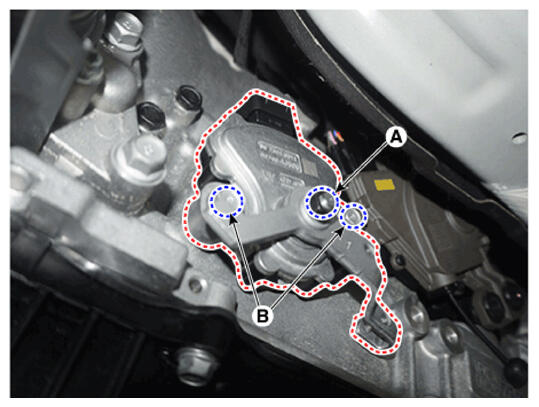

- Loosen the nut (A) and the bolts (B) and then removing the parking switch.
