Section 20 (Automatic Transmission System - 2.5L)
>>
Automatic Transmission System
>>

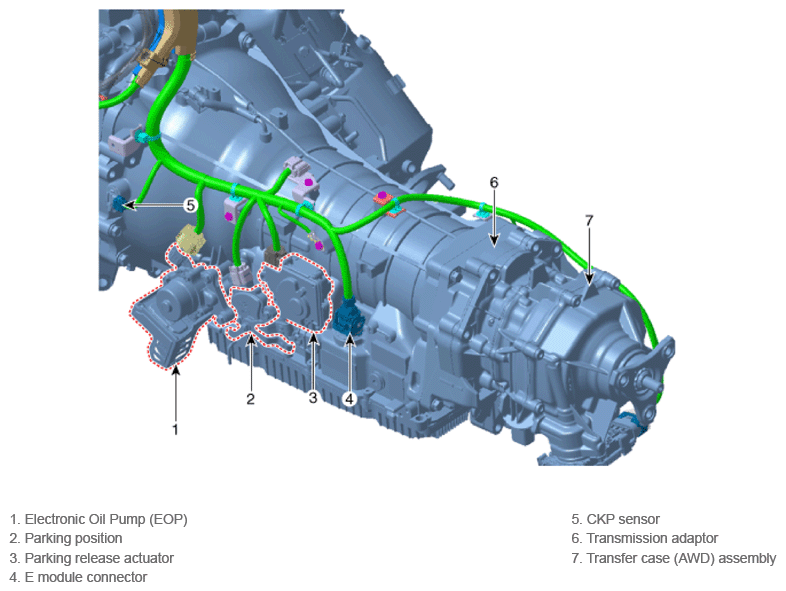

Components And Components Location
Components And Components Location
WARNING:
This page is about a different variant/trim than selected.
Courtesy of HYUNDAI MOTOR AMERICA
