[Evaporate Leakage Test]

WARNING: This page is about a different variant/trim than selected.
  1. Select "Evap. Leakage Test".

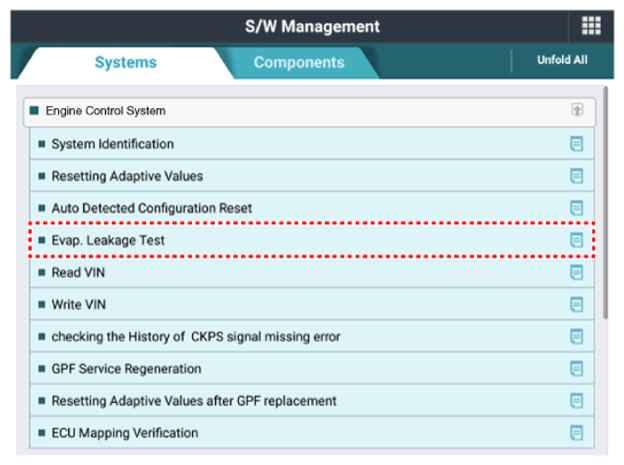

    G16769678Courtesy of HYUNDAI MOTOR AMERICA
  2. The test shall be conducted in accordance with diagnostic tool instructions.

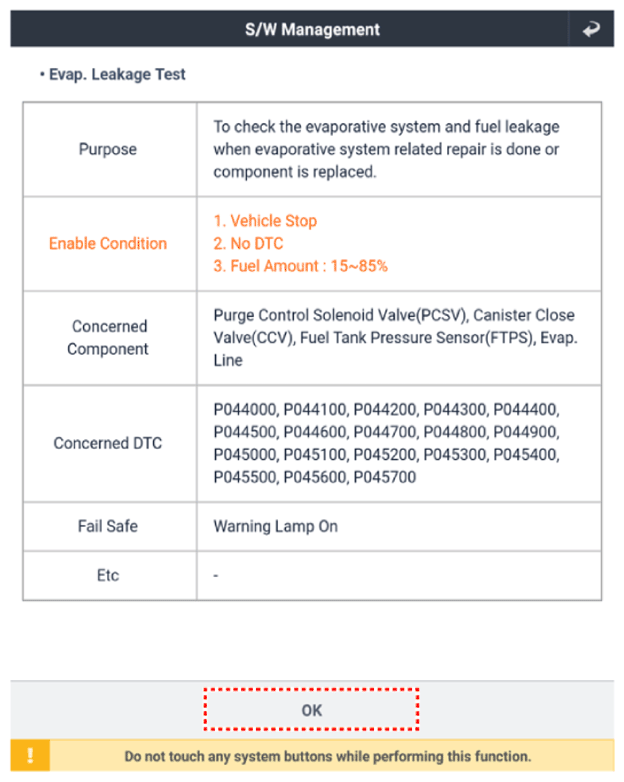

G16769679Courtesy of HYUNDAI MOTOR AMERICA

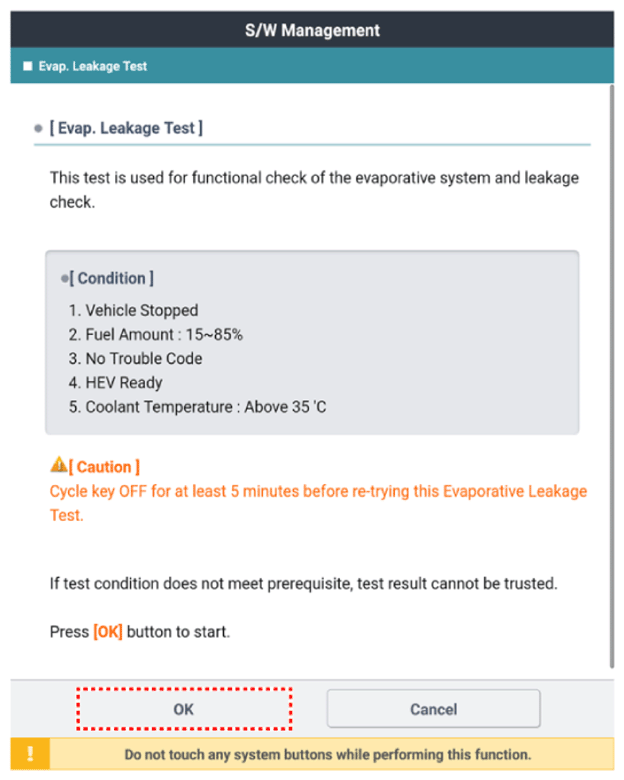

G16769680Courtesy of HYUNDAI MOTOR AMERICA

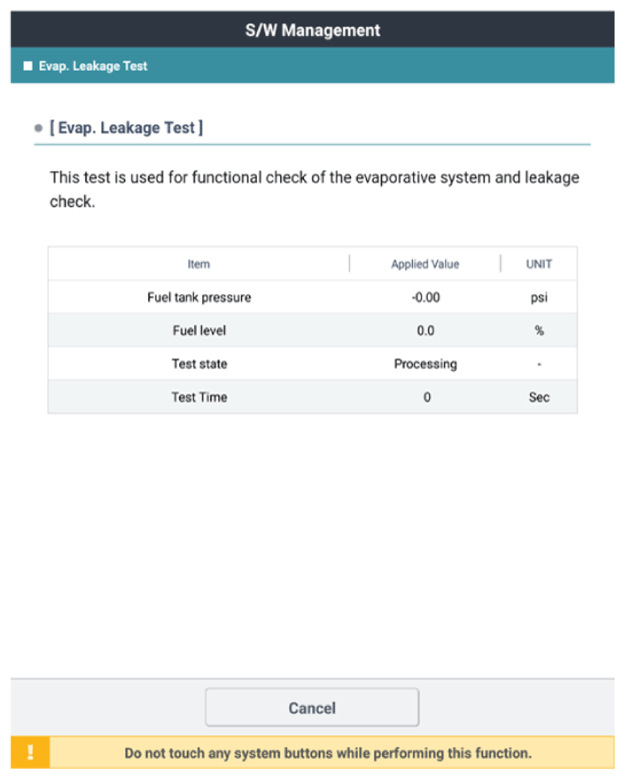

G16769681Courtesy of HYUNDAI MOTOR AMERICA

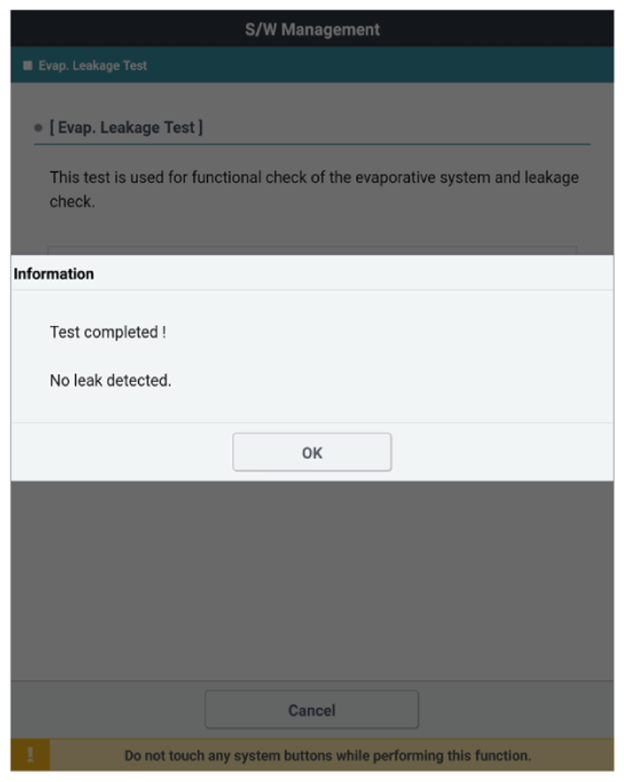

G16769682Courtesy of HYUNDAI MOTOR AMERICA
