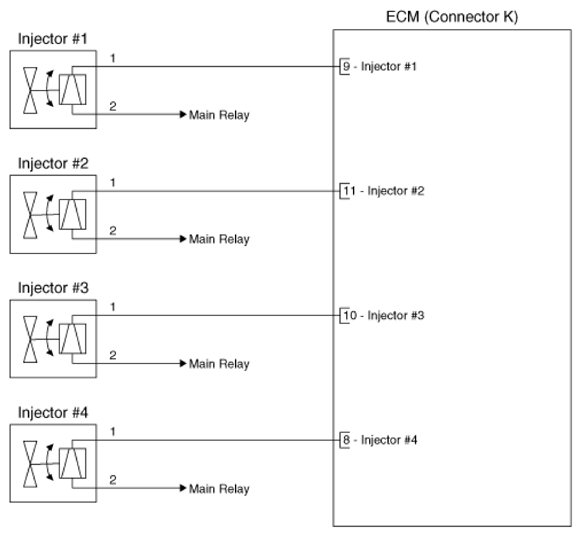

MPI Injector

WARNING: This page is about a different variant/trim than selected.

G16769829

Courtesy of HYUNDAI MOTOR AMERICA
