Description And Operation: Description

WARNING: This page is about a different variant/trim than selected.

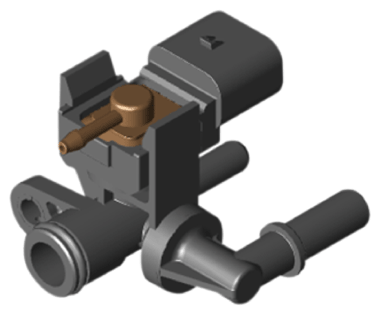

Ejector Pressure Sensor is installed on the air cleaner and controls the passage between the canister and the vacuum line. The evaporative gases gathered in the canister are delivered to the intercooler outlet pipe when the Ejector Pressure Sensor is open by ECM control signal.

Courtesy of HYUNDAI MOTOR AMERICA
