Connector assembly status test

WARNING: This page is about a different variant/trim than selected.

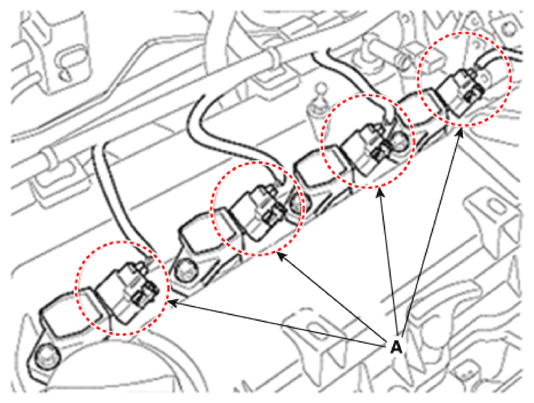

  1. Remove the connector (A) and reinstall it.
G16769566Courtesy of HYUNDAI MOTOR AMERICA

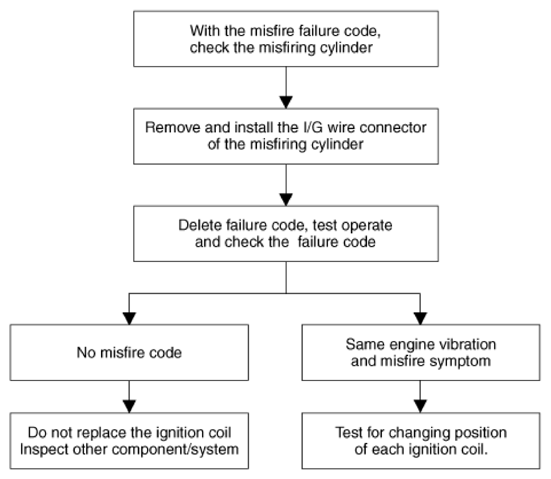

G16769567Courtesy of HYUNDAI MOTOR AMERICA
