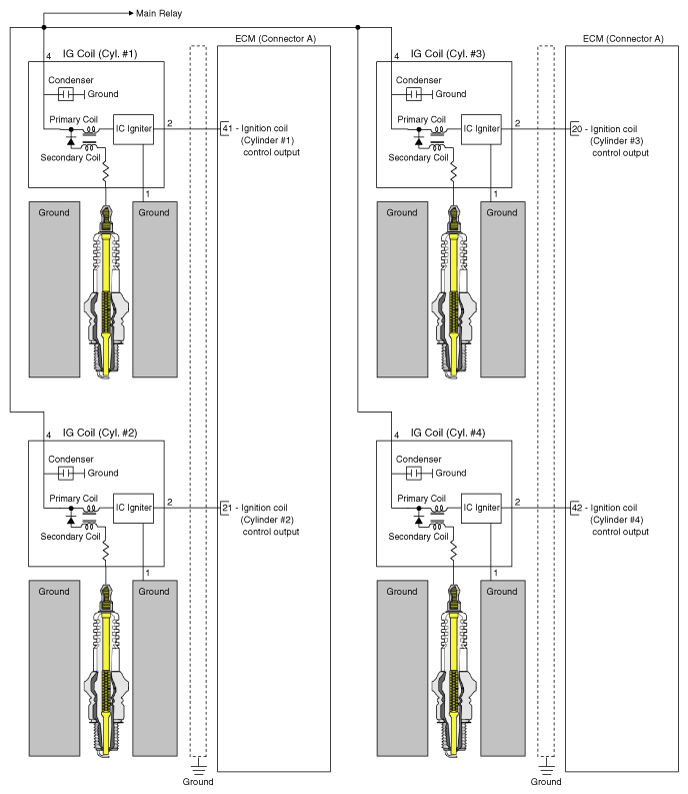

Circuit Diagram: Notes

WARNING: This page is about a different variant/trim than selected.

G16769564

Courtesy of HYUNDAI MOTOR AMERICA
