[Fuel Sender]
WARNING: This page is about a different variant/trim than selected.
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the fuel pump assembly.

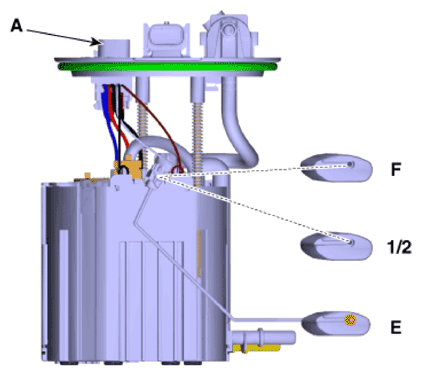

- Using an ohmmeter, measure the resistance between terminals 5 and 6 of sender connector (A) at each float level.
Pin No Description 1 Fuel pump motor (U) 2 Fuel pump motor (V) 3 Fuel pump motor (W) 4 - 5 Main fuel sender signal (+) 6 Main fuel sender ground (-) 7 Sub fuel sender signal (+) 8 Sub fuel sender ground (-) - Also check that the resistance changes smoothly when the float moves from "E" to "F".
| Position | Resistance (Ω) | Capacity (l ) |
|---|---|---|
| E | 297 - 303 | 5 |
| 1/2 | 152.1 - 157.1 | 42 |
| F | 13 - 17 | 77.5 |
