Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.

Release the residual pressure in fuel line.
(Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")
Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
Remove the air cleaner.
(Refer to Engine Mechanical System - "AIR CLEANER ")
Remove the intake manifold.
(Refer to Engine Mechanical System - "INTAKE MANIFOLD ")

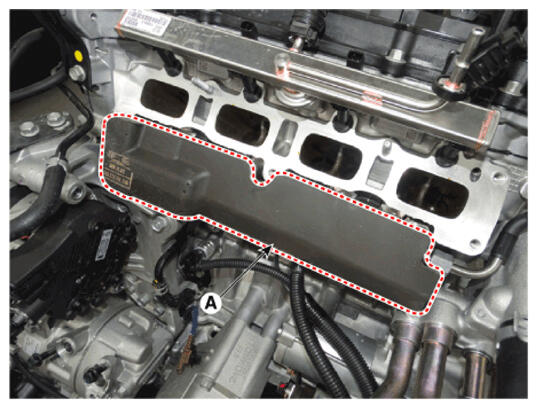

Remove the injector foam (A).

Courtesy of HYUNDAI MOTOR AMERICA

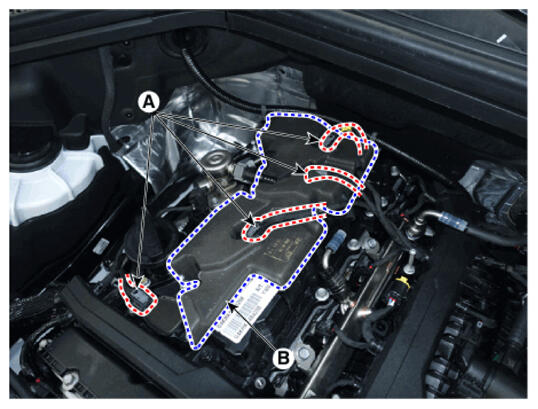

Disconnect the ignition coil connector (A).

Remove the ignition foam (B).

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

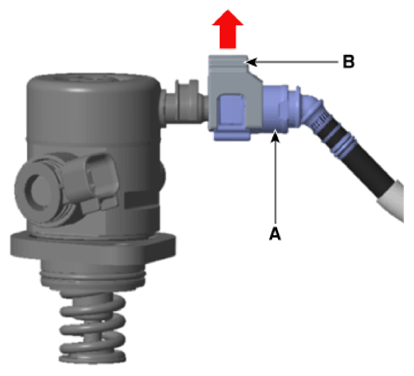

Pull the cover (B) of fuel feed tube quick-connector (A) by it in the direction of arrow.

Courtesy of HYUNDAI MOTOR AMERICA

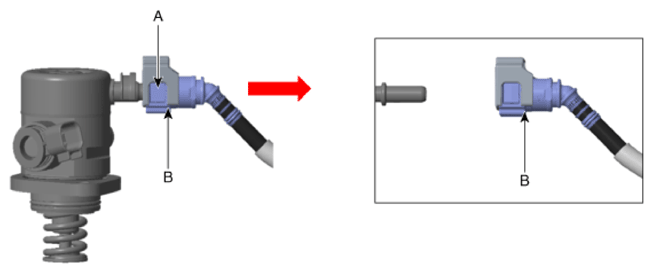

Disconnect the fuel feed tube quick-connector (B) by pulling it in the direction of arrow after pushing the quick-connector button (A).

Courtesy of HYUNDAI MOTOR AMERICA

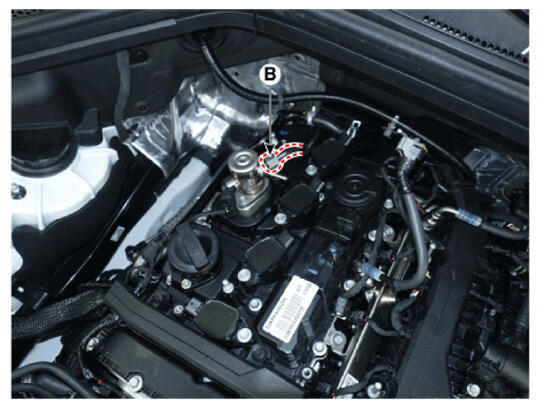

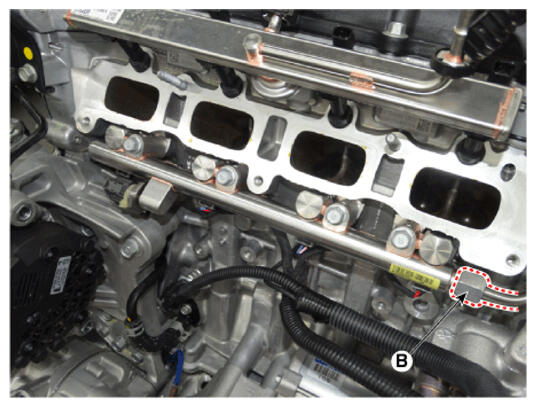

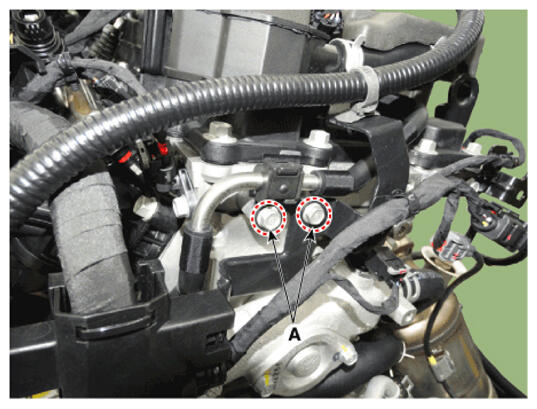

Remove the high pressure fuel pipe bracket bolts (A) and flange nut (B).
Tightening torque

A: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

B: 29.4 - 35.3 N.m (3.0 - 3.6 kgf.m, 21.7 - 26.0 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

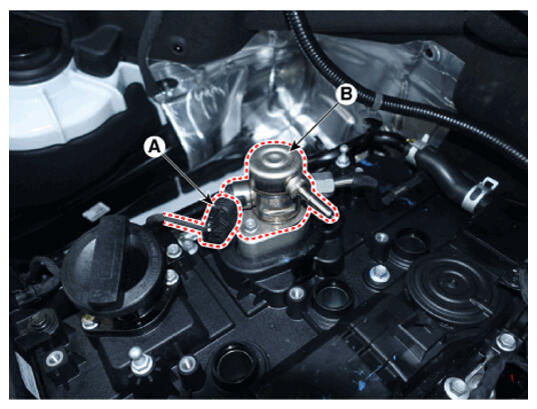

Disconnect the fuel pressure regulating valve connector (A).
Remove the high pressure fuel pump (B) from the cylinder head assembly after loosening the mounting bolts.
Tightening torque:

12.7 - 14.7 N.m (1.3 - 1.5 kgf.m, 9.4 - 10.8 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
