Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the fuel pump.
(Refer to Fuel Delivery System - "Low Pressure Fuel Pump ")

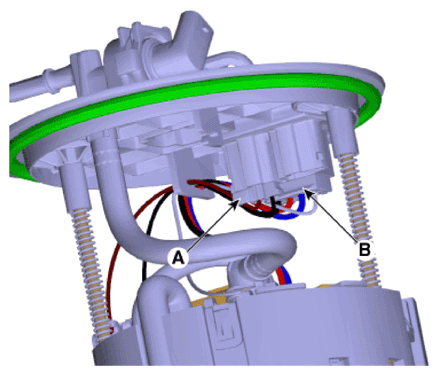

- Disconnect the fuel sender connector (A) and fuel pump connector (B).

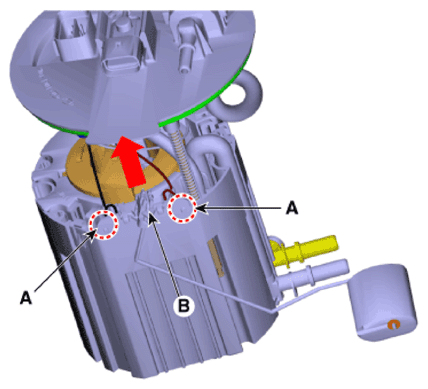

- Remove the fuel sender (B) after releasing the fixing hooks (A).
