Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the fuel pump.
(Refer to Fuel Delivery System - "Low Pressure Fuel Pump ")

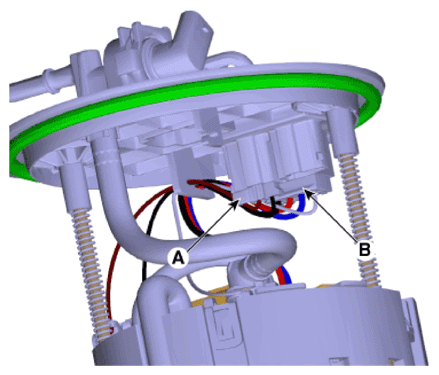

- Disconnect the fuel sender connector (A) and fuel pump connector (B).

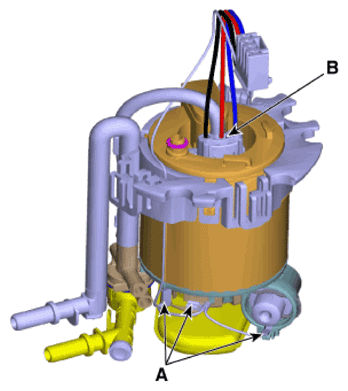

- Remove the fuel sender (B) after releasing the fixing hooks (A).

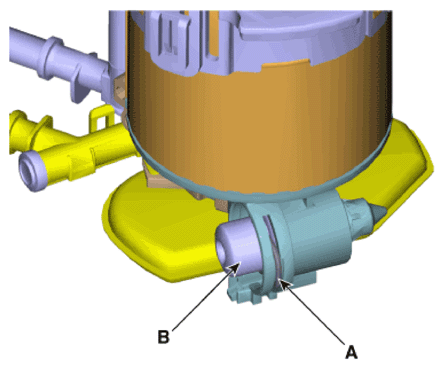

- Remove the fuel feed tube quick-connector (B) after releasing the fixing clip (A).

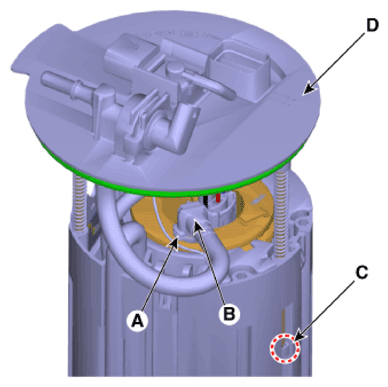

- Remove the head assembly (D) after releasing the fixing clip (C).

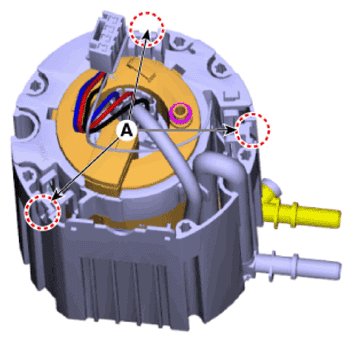

- Remove the reservoir cap (B) after releasing the fixing hooks (A).

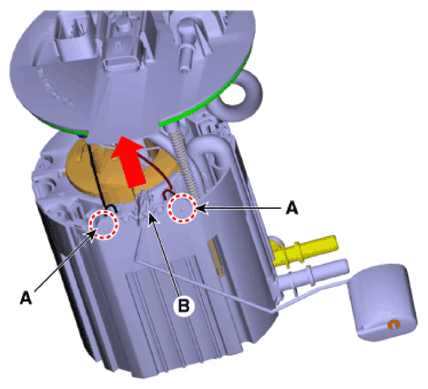

- Disconnect the ground cable (A).
- Disconnect the fuel pump motor connector (B).

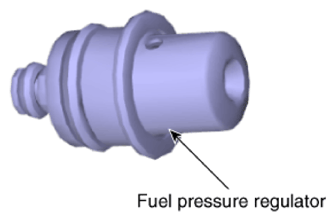

- Release the fixing hooks (A) and then remove fuel pressure regulator (B).
