Low Pressure Delivery Pipe

WARNING: This page is about a different variant/trim than selected.
  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.

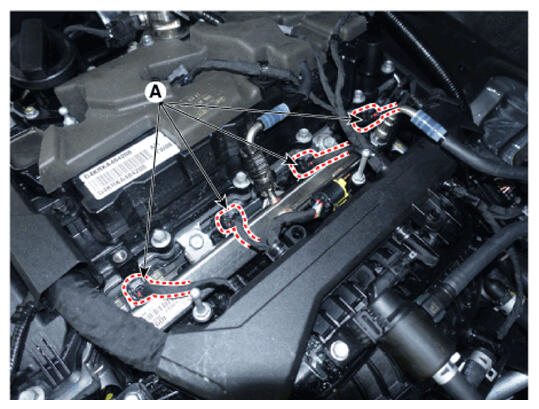

  3. Disconnect the injector connector (A).
    G16769989Courtesy of HYUNDAI MOTOR AMERICA

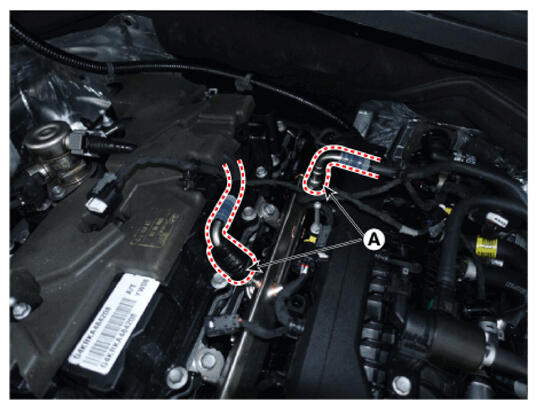

  4. Disconnect the fuel feed quick-connectors (A).
    G16769990Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

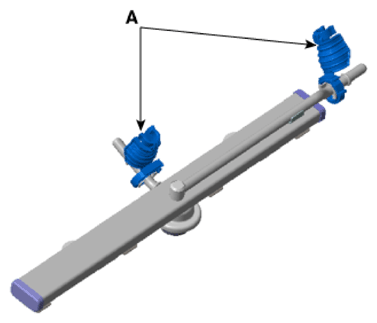

    • Open the clamp cover (A) before disconnect the quick connector. (If the clip is applied)
    G16769991Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:

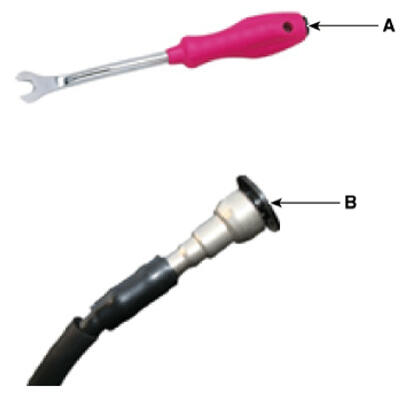

    • When removing the quick-connnector with the clip removing tool (A), be careful not to damage the plastic clip (B).
    • If the clip is damaged, fuel line leak can be occurred due to a bad connection.
    G16769992Courtesy of HYUNDAI MOTOR AMERICA

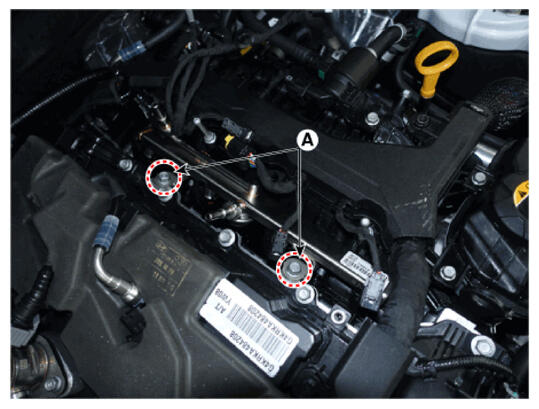

  5. Remove the delivery pipe & injector assembly after loosening the mounting bolts (A).

    Tightening torque:

    18.7 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.8 - 17.3 lb ft)

    G16769993Courtesy of HYUNDAI MOTOR AMERICA

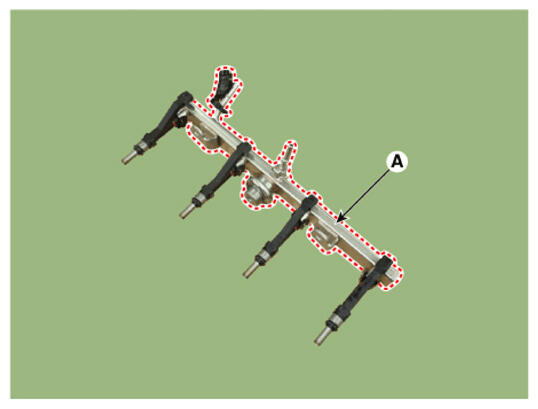

  6. Remove the injector from the delivery pipe (A) after releasing the fixing clip.
G16769994Courtesy of HYUNDAI MOTOR AMERICA
