CVVT and Camshaft

WARNING: This page is about a different variant/trim than selected.
  1. Remove the timing chain.

    (Refer to Timing System - "TIMING CHAIN ")

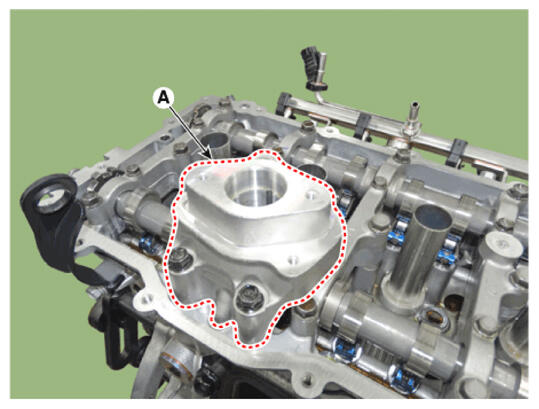

  2. Remove the high pressure fuel pump bracket (A).
    G16769268Courtesy of HYUNDAI MOTOR AMERICA

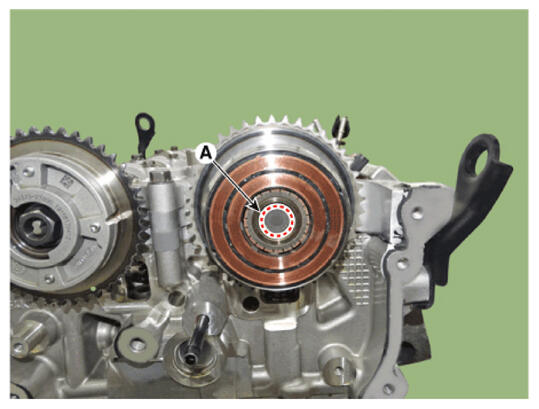

  3. Remove it by breaking the center of E-CVVT motor plug (A).
    G16769269Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Remove after 30 minutes of switching "OFF" the ignition to drain out the oil inside the E-CVVT motor plug.
    • Do not tilt the front of engine (timing chain cover side) downward as residual oil may flow out during E-CVVT motor plug removal.
    • If oil flows out during E-CVVT motor plug removal, wipe off immediately and block the motor shaft inlet with a clean towel.

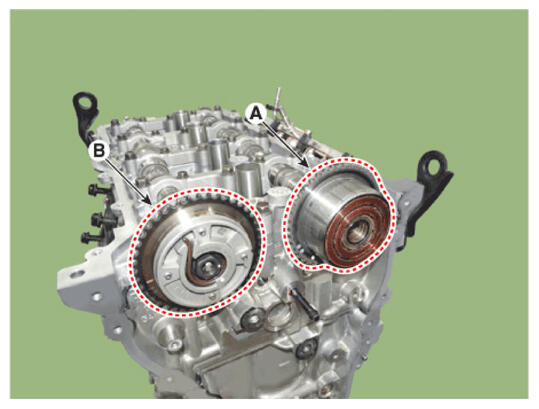

  4. Remove the intake E-CVVT assembly (A) and exhaust CVVT assembly (B).
    G16769270Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

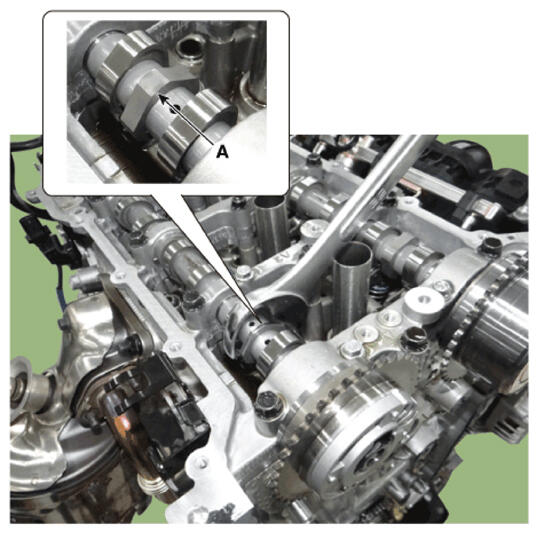

    • When removing the CVVT assembly bolt, hold the camshaft (A) with a wrench to prevent the camshaft from rotating.
    G16769271Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the Camshaft.

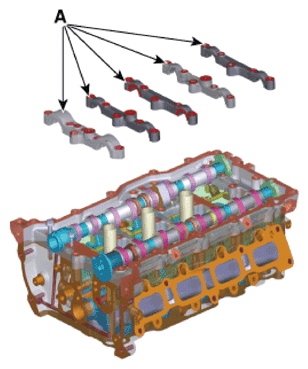

    1. Remove the Camshaft bearing cap (A).
      G16769272Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Be careful not to change the position and direction of the camshaft bearing caps.
      NOTE:

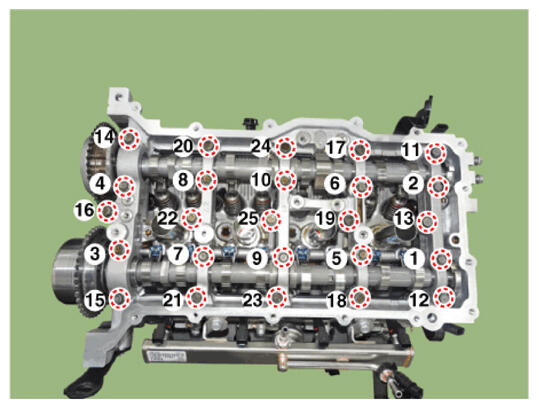

      • Remove the camshaft bearing caps in the sequence shown below.
      Fig 1: Camshaft Bearing Caps Bolts Loosening Sequence
      G16769273Courtesy of HYUNDAI MOTOR AMERICA

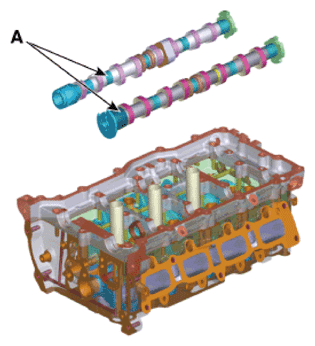

    2. Remove the camshafts (A).
G16769274Courtesy of HYUNDAI MOTOR AMERICA
