CVVT and Camshaft Assembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the timing chain.

    (Refer to Timing System - "TIMING CHAIN ")

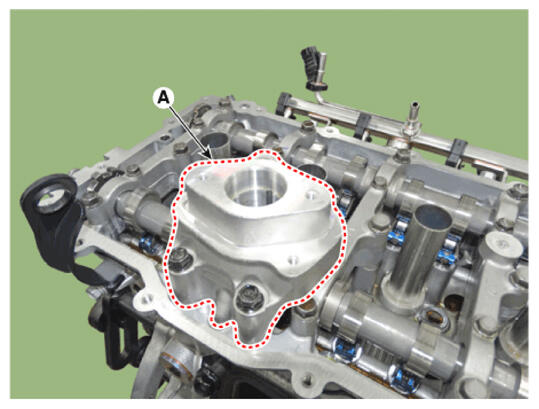

  2. Remove the high pressure fuel pump bracket (A).
    G16769275Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the intake/exhaust CVVT and camshaft assembly.

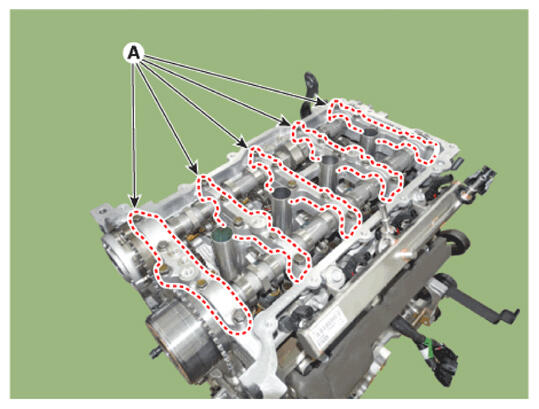

    1. Remove the Camshaft bearing cap (A).
      G16769276Courtesy of HYUNDAI MOTOR AMERICA
      NOTE:
      • Be careful not to change the position and direction of camshaft bearing caps.
      NOTE:
      • Remove the camshaft bearing caps in the sequence shown.

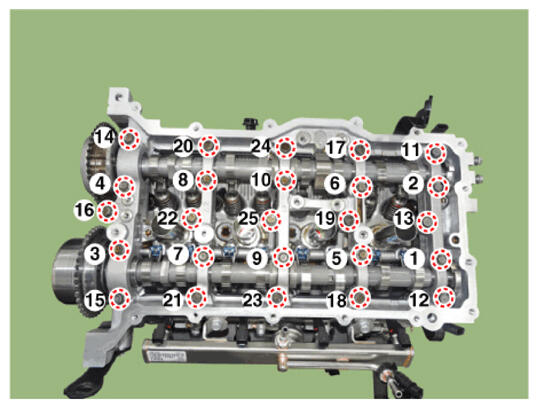

      Fig 1: Camshaft Bearing Caps Bolts Loosening Sequence
      G16769277Courtesy of HYUNDAI MOTOR AMERICA

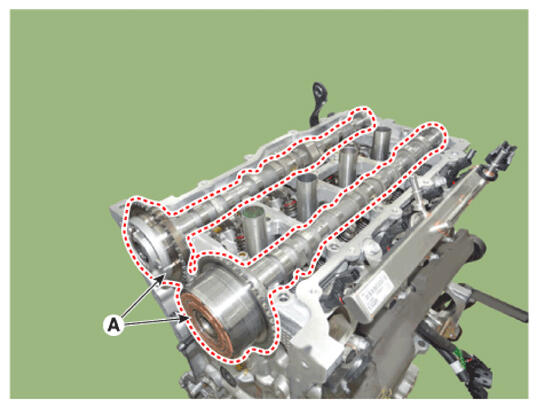

    2. Remove the intake/exhaust CVVT and camshaft assembly (A).
G16769278Courtesy of HYUNDAI MOTOR AMERICA
