Removal and Installation

  1. Disconnect the battery negative terminal from the trunk room.
  2. Remove the engine cover.

    (Refer to Engine and Transmission Assembly - "ENGINE COVER ")

  3. Remove the engine room under cover.

    (Refer to Engine and Transmission Assembly - "ENGINE ROOM UNDER COVER ")

  4. Remove the LH and RH air cleaner assembly.

    (Refer to Intake and Exhaust System - "AIR CLEANER ")

  5. Disconnect the water cooled intercooler outlet hose and then drain the water cooled intercooler coolant.

    (Refer to Cooling System - "COOLANT ")

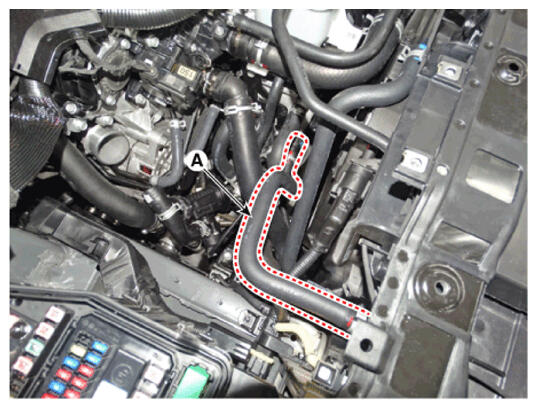

  6. Disconnect the water cooled intercooler inlet hose (A).
    G16776474Courtesy of HYUNDAI MOTOR AMERICA
  7. Remove the water cooled intercooler coolant reservoir tank and bracket.

    (Refer to Cooling System - "RESERVOIR TANK ")

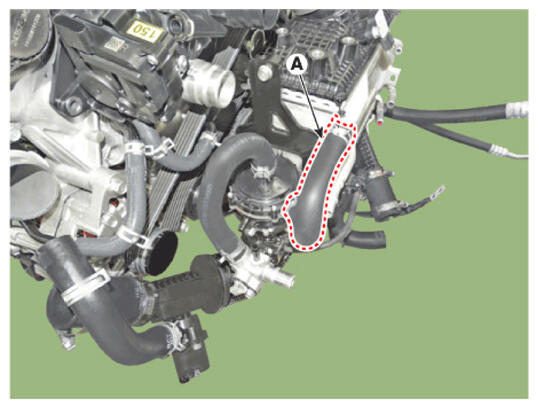

  8. Disconnect the electric water pump (EWP) hose (A).
    G16776475Courtesy of HYUNDAI MOTOR AMERICA
  9. Remove the ATF warmer.

    (Refer to Oil Cooler )

  10. Remove the electric water pump (EWP) and bracket.

    (Refer to Cooling System - "ELECTRIC WATER PUMP (EWP) ")

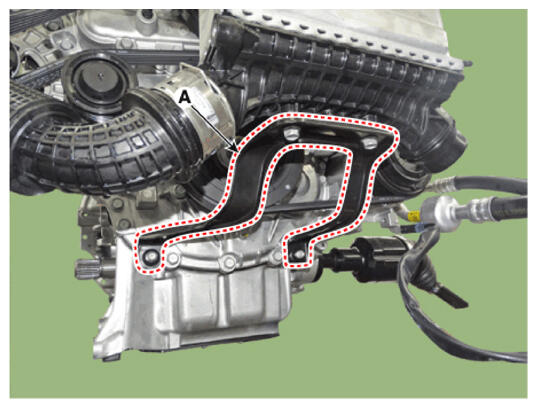

  11. Remove the water cooled intercooler mounting bracket (A).

    Tightening torque:  Bolt: 21.6 - 32.4 N.m (2.2 - 3.3 kgf.m, 15.9 - 23.9 lb.ft)

    Nut: 49.0 - 53.9 N.m (5.0 - 5.5 kgf.m, 36.2 - 39.8 lb.ft)

    G16776476Courtesy of HYUNDAI MOTOR AMERICA

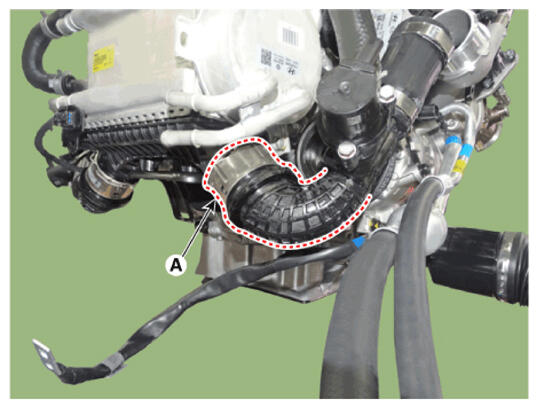

  12. Remove the water cooled intercooler LH inlet pipe (A).
    G16776477Courtesy of HYUNDAI MOTOR AMERICA

    Information

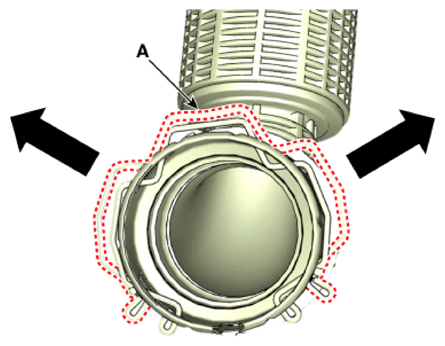

    • When separate the intercooler inlet pipe, pull out the quick connector clamp (A) in the direction of the arrow as shown below.
    G16776478Courtesy of HYUNDAI MOTOR AMERICA

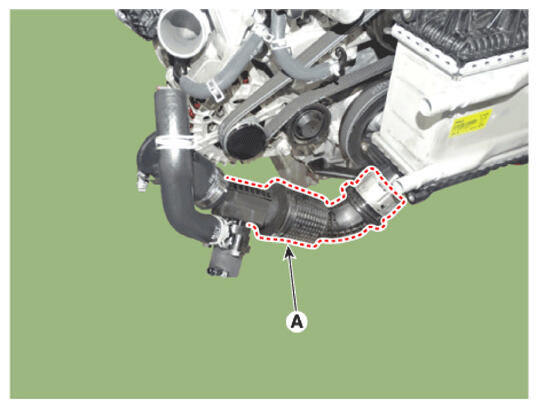

  13. Remove the water cooled intercooler RH inlet pipe (A).
    G16776479Courtesy of HYUNDAI MOTOR AMERICA

    Information

    • When separate the intercooler inlet pipe, pull out the quick connector clamp (A) in the direction of the arrow as shown below.
    G16776480Courtesy of HYUNDAI MOTOR AMERICA

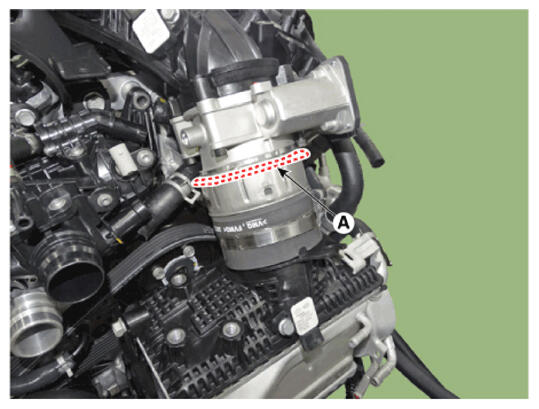

  14. Separate the intercooler outlet hose quick clamp (A).
    G16776481Courtesy of HYUNDAI MOTOR AMERICA

    Information

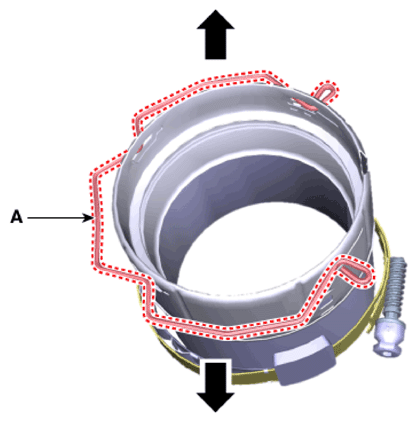

    • When separate the intercooler outlet hose, pull out the quick connector clamp (A) in the direction of the arrow as shown below.
    G16776482Courtesy of HYUNDAI MOTOR AMERICA

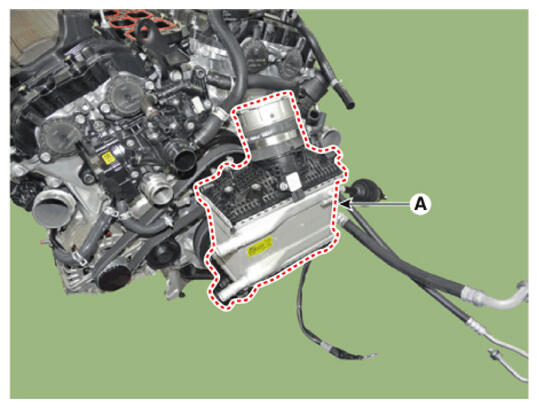

  15. Remove the water cooled intercooler (A) with the intercooler outlet hose.
    G16776483Courtesy of HYUNDAI MOTOR AMERICA
  16. Install in the reverse order of removal.
  17. Fill the water cooled intercooler coolant.

    (Refer to Cooling System - "COOLANT ")

    NOTE:
    • The water cooled intercooler coolant must be injected according to the electric water pump (EWP) coolant filling method.
  18. Recheck coolant level.
