Components And Components Location: Components: [RH]

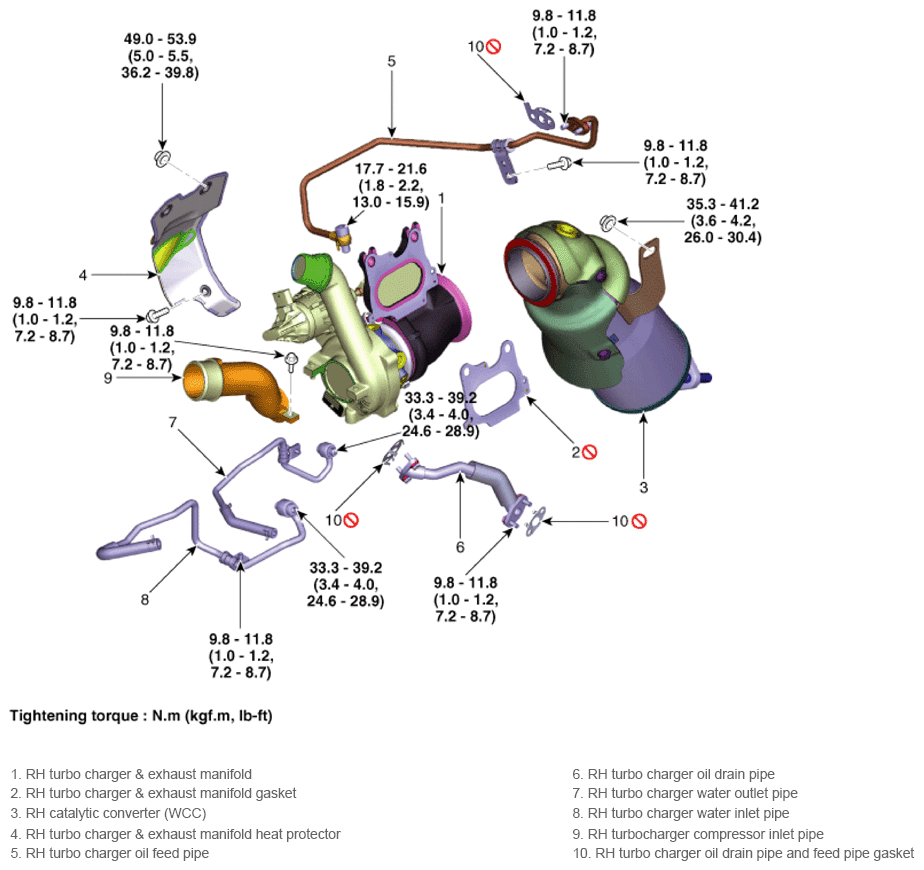

Fig 1: Turbo Charger & Exhaust Manifold And Catalytic Converter Components Location With Torque Specification (RH)

G16776489

Courtesy of HYUNDAI MOTOR AMERICA
