Components And Components Location: Components: [LH]

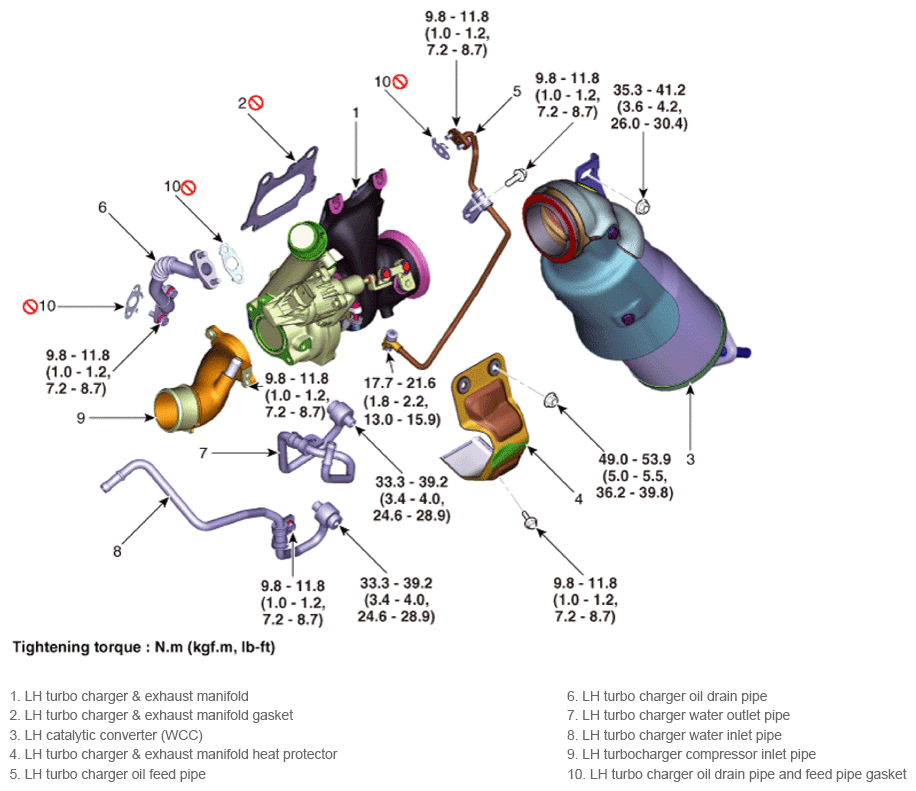

Fig 1: Turbo Charger & Exhaust Manifold And Catalytic Converter Components Location With Torque Specification (LH)

G16776488

Courtesy of HYUNDAI MOTOR AMERICA
