Removal and Installation

Disconnect the battery negative terminal from the trunk room.
Remove the engine cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")
Remove the LH and RH air cleaner assembly.
(Refer to Intake and Exhaust System - "AIR CLEANER ")

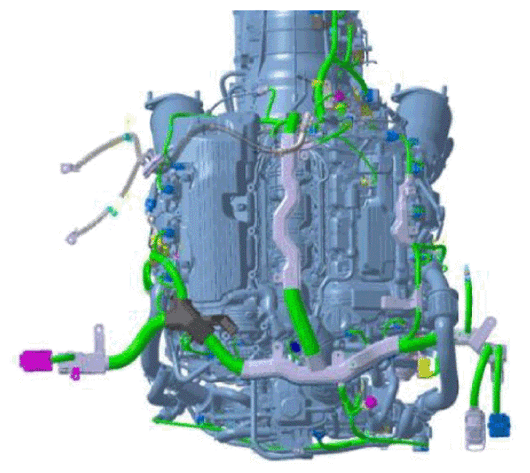

Remove the engine wiring connectors and harness clamps around the surge tank and then remove the connector brackets and wiring protector.
Tightening torque: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.7 - 7.2 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

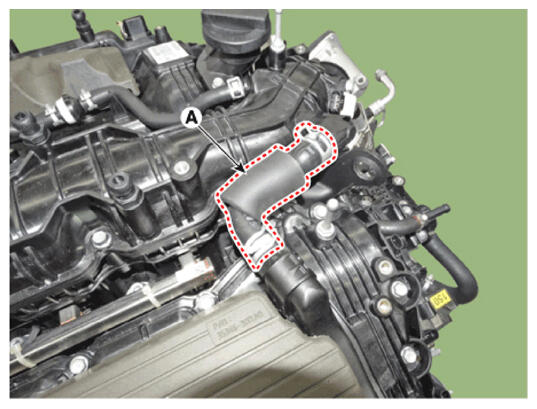

Disconnect the positive crankcase ventilation (PCV) hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

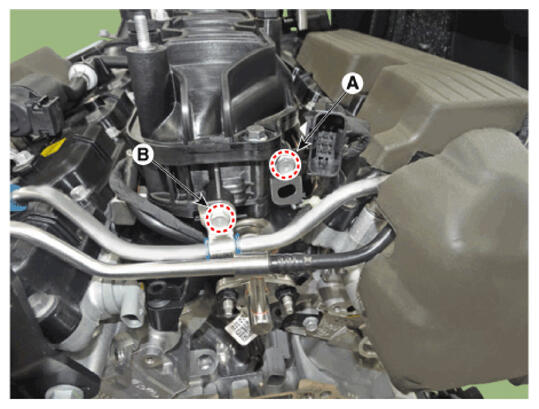

Remove the RH MPI injector connector bracket mounting bolt (A) and high pressure fuel pipe bracket mounting bolt (B).
Tightening torque: 9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

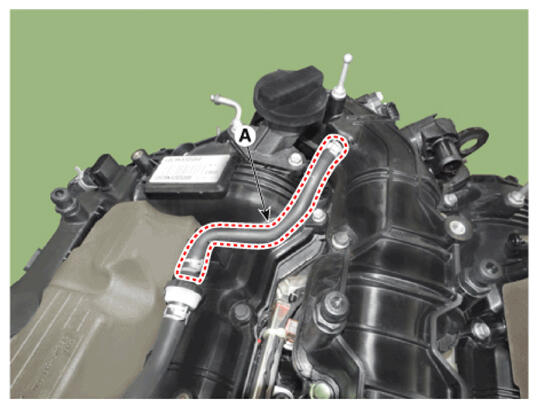

Remove the purge control solenoid valve (PCSV) hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

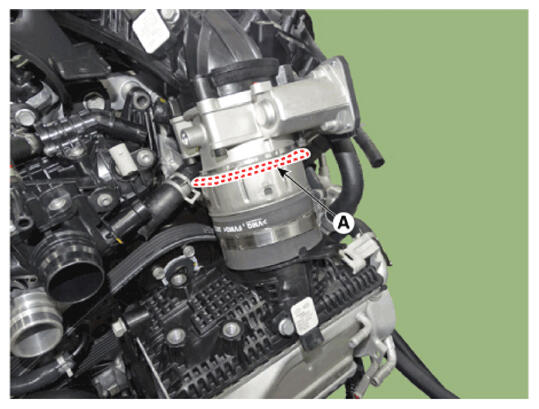

Separate the intercooler outlet hose quick clamp (A).

Courtesy of HYUNDAI MOTOR AMERICA

Information

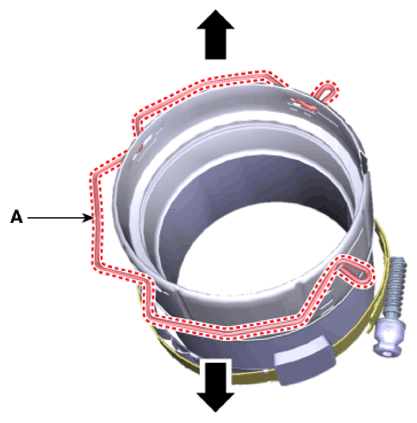

- When separate the intercooler outlet hose, pull out the quick connector clamp (A) in the direction of the arrow as shown below.
Courtesy of HYUNDAI MOTOR AMERICA

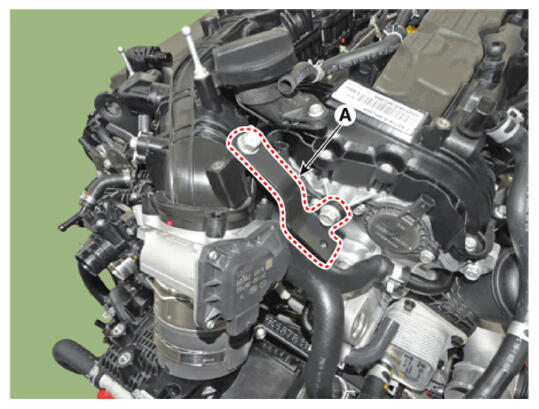

Remove the surge tank stay (A).
Tightening torque: 36.3 - 41.2 N.m (3.7 - 4.2 kgf.m, 26.8 - 30.4 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

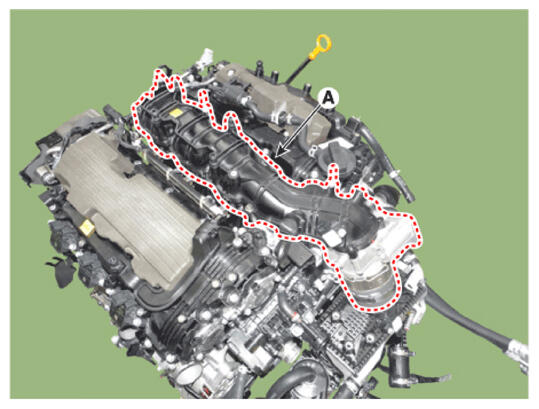

Remove the surge tank (A) with the intercooler outlet hose.
Tightening torque: 9.8 - 11.7 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.6 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
