Rear Muffler

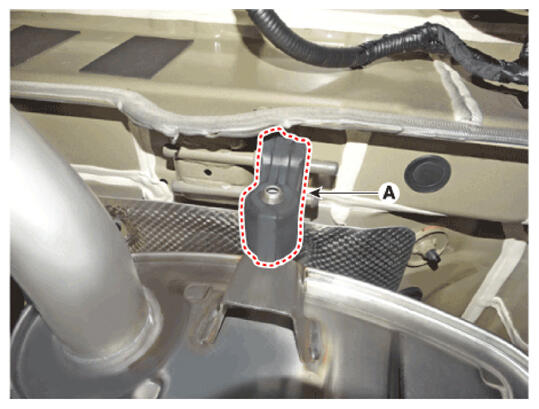

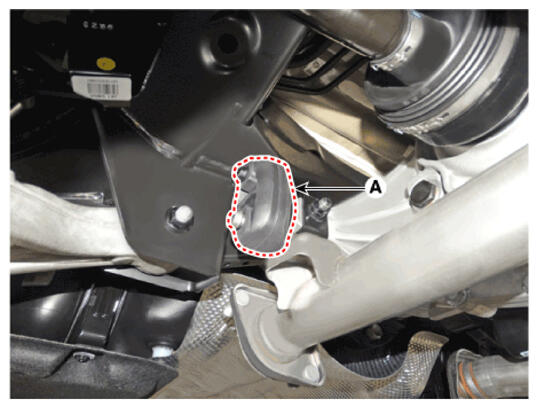

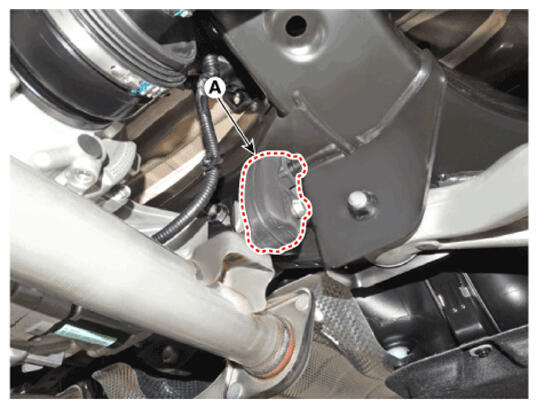

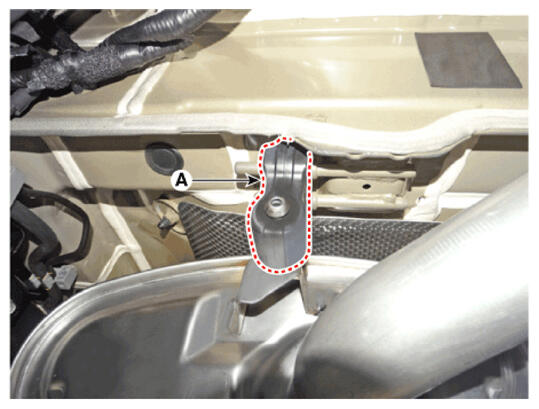

Remove the rear muffler hanger (A).
[LH front]

Courtesy of HYUNDAI MOTOR AMERICA

[RH front]

Courtesy of HYUNDAI MOTOR AMERICA

[LH rear]

Courtesy of HYUNDAI MOTOR AMERICA

[RH rear]

Courtesy of HYUNDAI MOTOR AMERICA

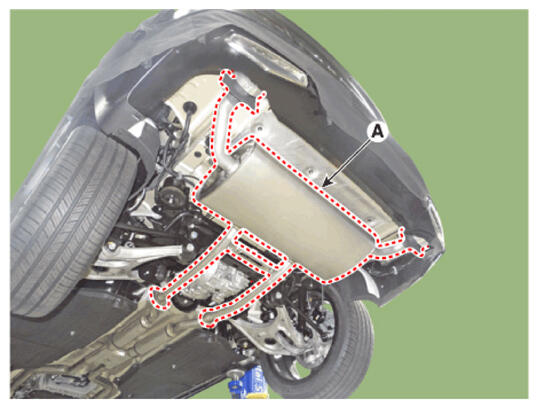

Remove the rear muffler (A).
Tightening torque: 39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
NOTE:
- When installing, replace with new gaskets.
