RH air cleaner element replacement

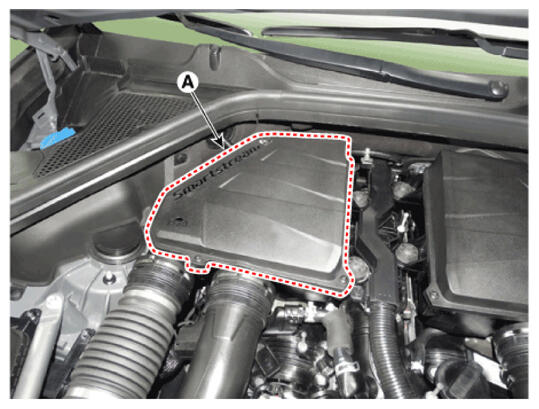

Open the RH air cleaner element cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

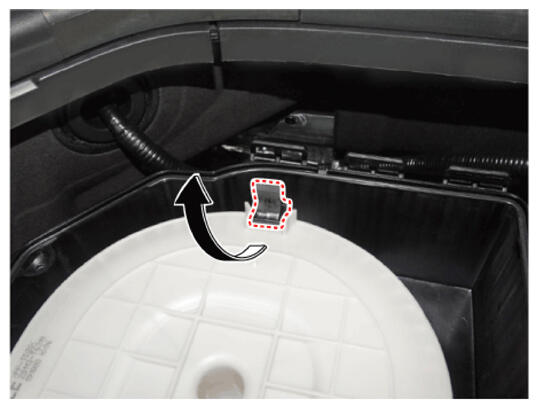

Release the clamp in the direction as shown below.

Courtesy of HYUNDAI MOTOR AMERICA

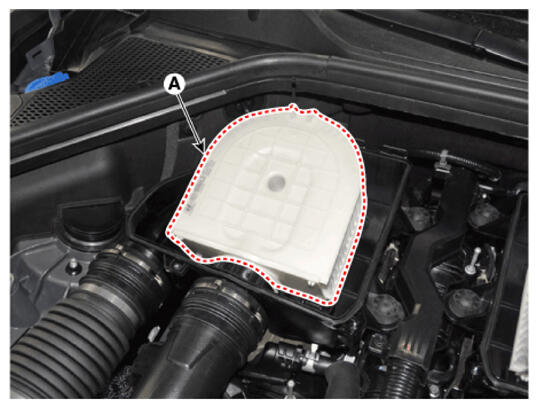

Replace the RH air cleaner element (A) with a new one.

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- If there is any foreign substance inside the air cleaner assembly, clean the inside and replace the air cleaner element.

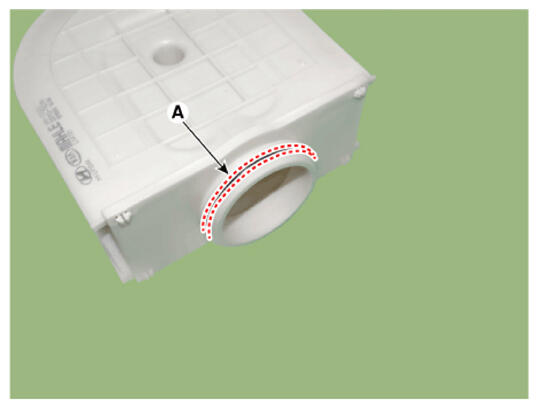

- Do not reuse the air cleaner element O-ring (A).
Courtesy of HYUNDAI MOTOR AMERICA
Close the RH air cleaner element cover (A).

Courtesy of HYUNDAI MOTOR AMERICA
