LH air cleaner element replacement

  1. Open the LH air cleaner element cover (A).
    G16776454Courtesy of HYUNDAI MOTOR AMERICA

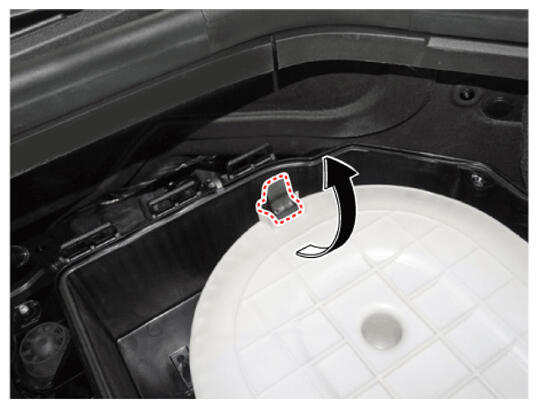

  2. Release the clamp in the direction as shown below.
    G16776455Courtesy of HYUNDAI MOTOR AMERICA

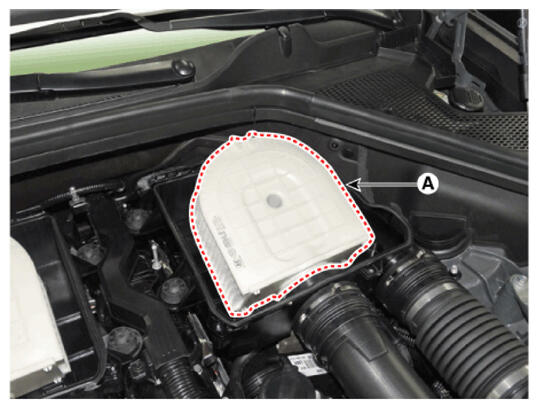

  3. Replace the LH air cleaner element (A) with a new one.
    G16776456Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • If there is any foreign substance inside the air cleaner assembly, clean the inside and replace the air cleaner element.

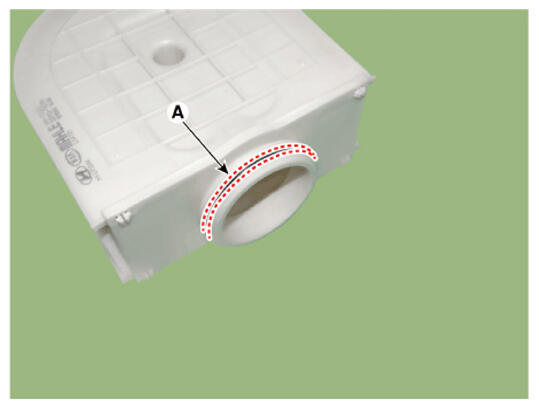

    • Do not reuse the air cleaner element O-ring (A).
      G16776457Courtesy of HYUNDAI MOTOR AMERICA
  4. Close the LH air cleaner element cover (A).
    G16776458Courtesy of HYUNDAI MOTOR AMERICA
