LH air cleaner assembly

Disconnect the battery negative terminal from the trunk room.
Remove the engine cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")
Remove the engine room cover.
(Refer to Engine and Transmission Assembly - "ENGINE COVER ")

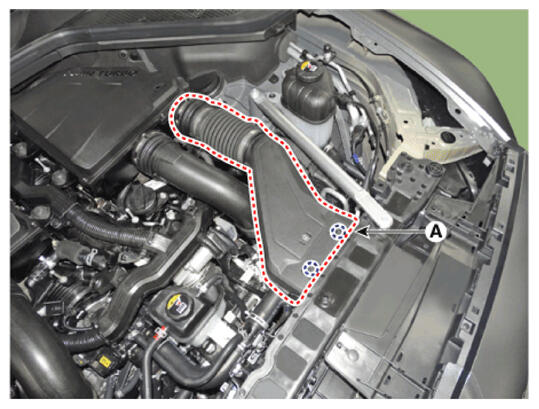

Remove the LH air duct (A).
Tightening torque: 7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.7 - 7.2 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA

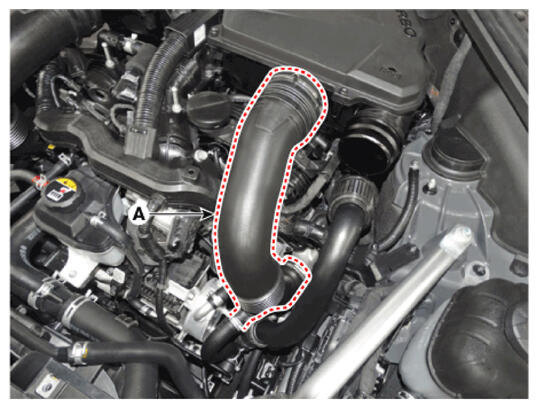

Disconnect the LH air intake hose (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the RCV hose (A).

Courtesy of HYUNDAI MOTOR AMERICA

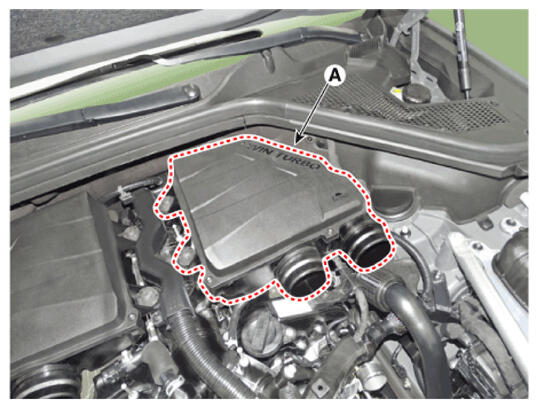

Remove the LH air cleaner assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
