[Steering column shroud lower panel]

CAUTION:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the steering column shroud upper panel.
Remove the crash pad side cover [LH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

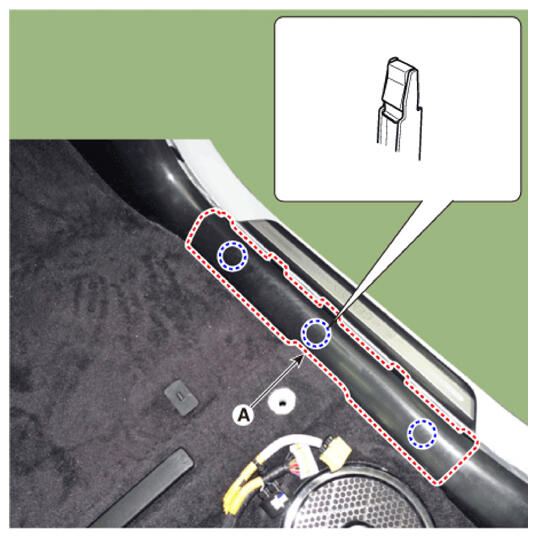

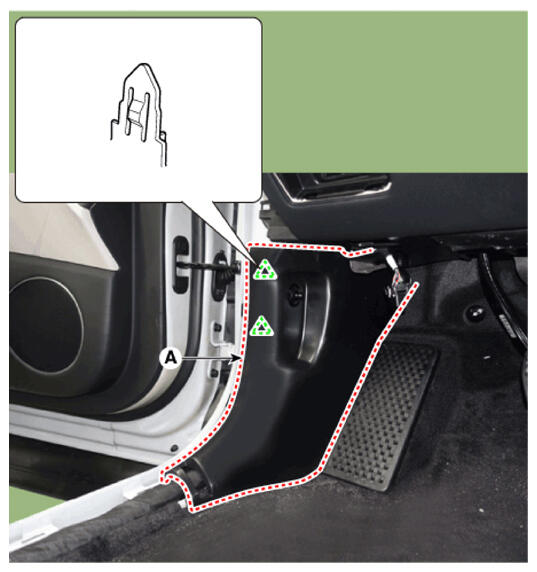

Remove the front door scuff trim (A).

Courtesy of HYUNDAI MOTOR AMERICA
After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the cowl side trim (A).

Courtesy of HYUNDAI MOTOR AMERICA

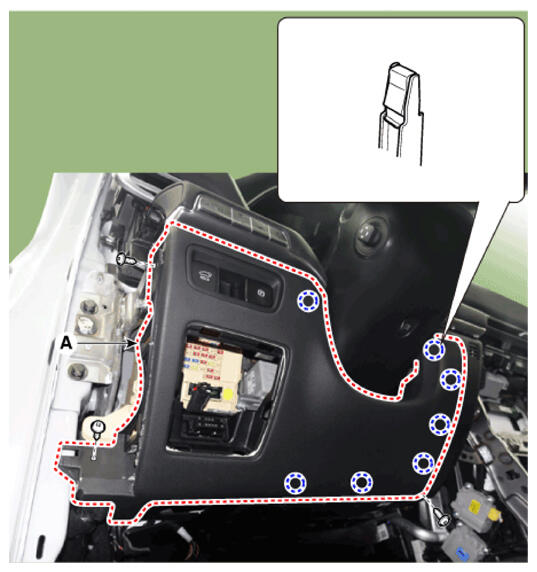

Loosen the mounting screws, remove the crash pad lower panel (A).

Courtesy of HYUNDAI MOTOR AMERICA

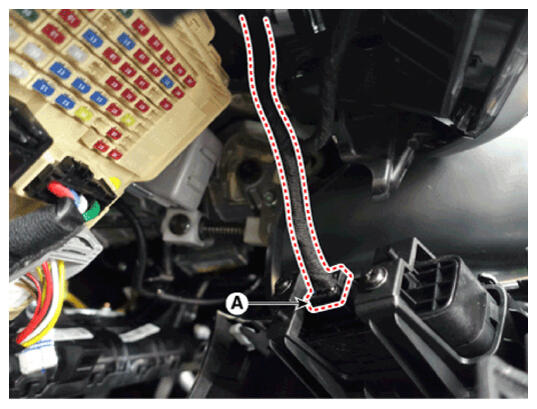

Press the lock pin and separate the crash pad lower panel connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

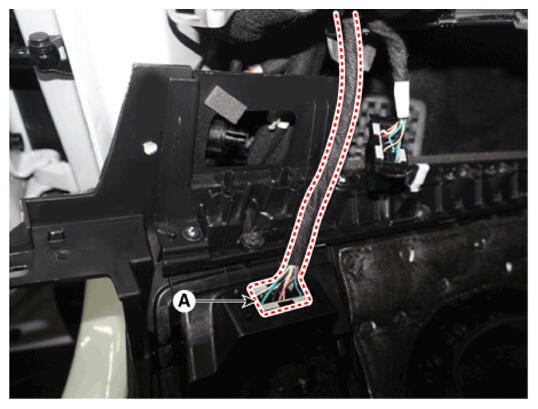

Press the lock pin and separate the diagnosis connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

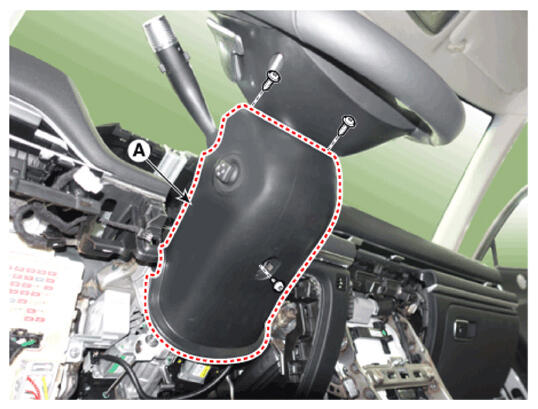

Loosen the mounting screws by turning the steering wheel to the left and right, and remove the steering column shroud lower panel (A).

Courtesy of HYUNDAI MOTOR AMERICA

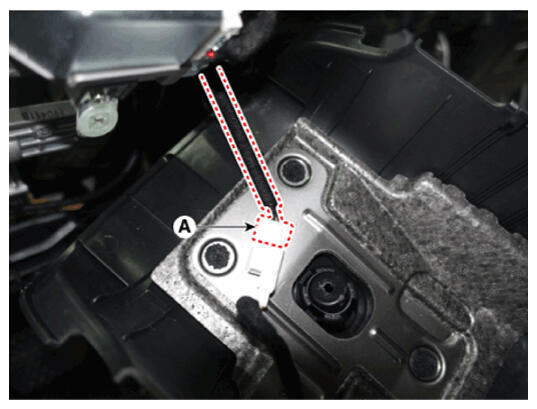

Press the lock pin and separate the connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connector are connected in properly.
