Repair Procedures: Replacement

CAUTION:
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  1. Remove the floor console assembly.

    (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

  2. Remove the crash pad lower panel.

    (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

  3. Remove the crash pad side cover [RH].

    (Refer to Crash Pad - "CRASH PAD SIDE COVER ")

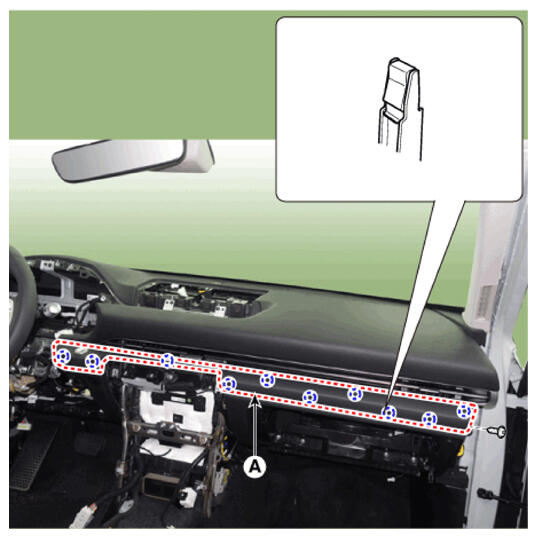

  4. Loosen the mounting screw and then remove the crash pad garnish [RH] (A).
    G16773843Courtesy of HYUNDAI MOTOR AMERICA

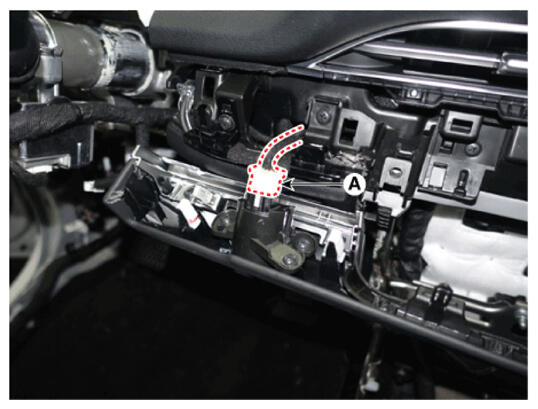

  5. Separate the start button connector (A).
    G16773844Courtesy of HYUNDAI MOTOR AMERICA

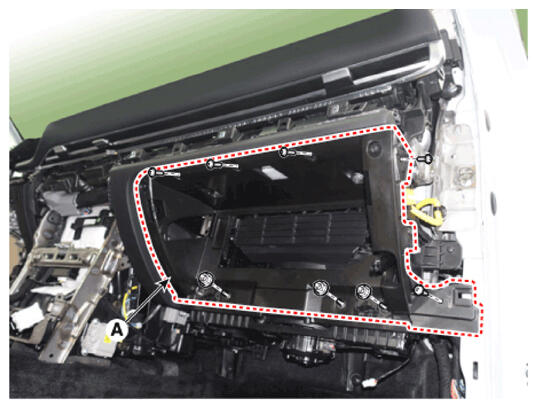

  6. Loosen the mounting screws and nuts, remove the glove box housing cover (A).
    G16773845Courtesy of HYUNDAI MOTOR AMERICA

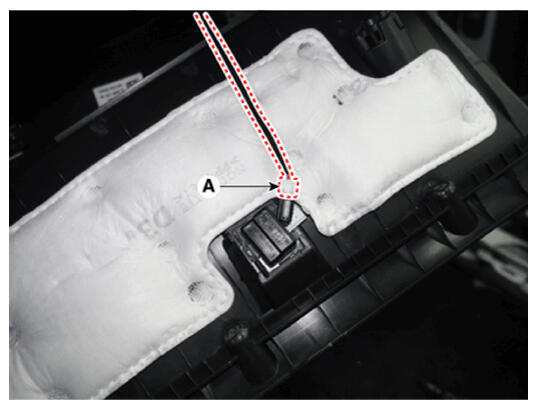

  7. Separate the glove box lamp connector (A).
    G16773846Courtesy of HYUNDAI MOTOR AMERICA

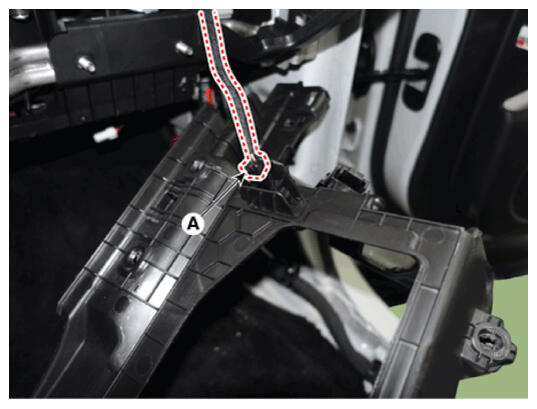

  8. Separate the glove box switch connector (A).
    G16773847Courtesy of HYUNDAI MOTOR AMERICA
  9. To install, reverse removal procedure.

    Information

    • Replace any damaged clips (or pin-type retainers).
    • Make sure the connector are connected in properly.
