Repair Procedures: Replacement

CAUTION:

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

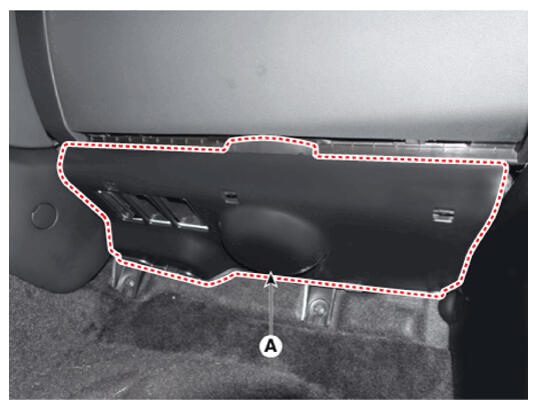

Using a flat-tip screwdriver and remove the crash pad under cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

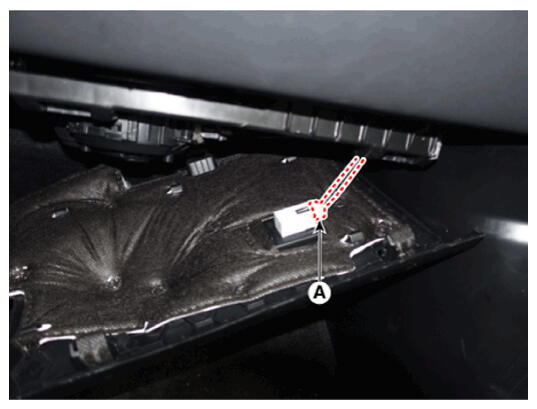

Separate the foot lamp connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
