Repair Procedures: Replacement

CAUTION:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the main crash pad assembly.

    (Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")

  2. Remove the knee airbag (KAB).

    (Refer to Restraint (Airbag (Event#1)) - "KNEE AIRBAG (KAB) MODULE ")

  3. Remove the accelerator pedal module.

    (Refer to Fuel system - "ACCELERATOR PEDAL ")

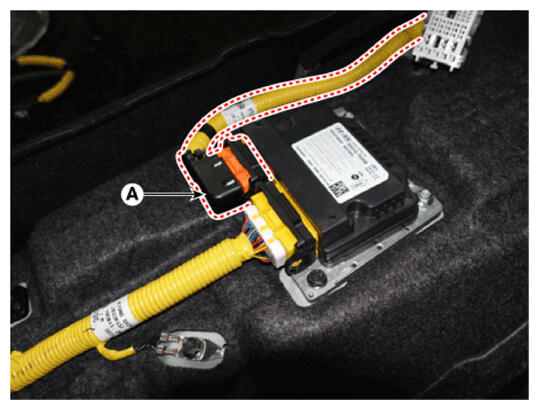

  4. Press the lock pin and separate the airbag control module (SRSCM) connector (A).
    G16773913Courtesy of HYUNDAI MOTOR AMERICA

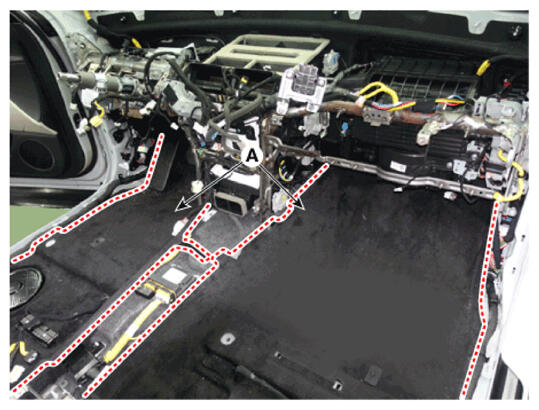

  5. Separate the floor carpet (A) backwards.
    G16773914Courtesy of HYUNDAI MOTOR AMERICA

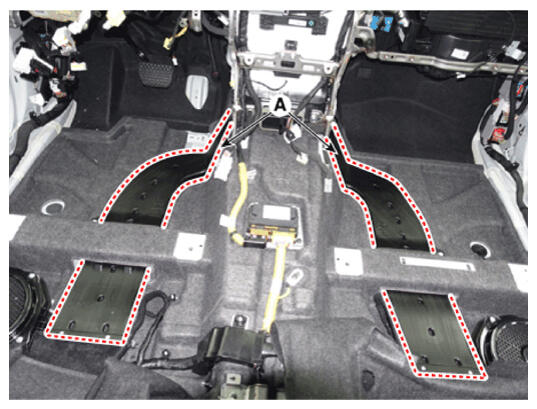

  6. Remove the front air duct (A).
    G16773915Courtesy of HYUNDAI MOTOR AMERICA
  7. Disconnect the steering column connectors.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

  8. Loosen the mounting nuts and through bolts in the frontal area and lower the steering column.

    (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

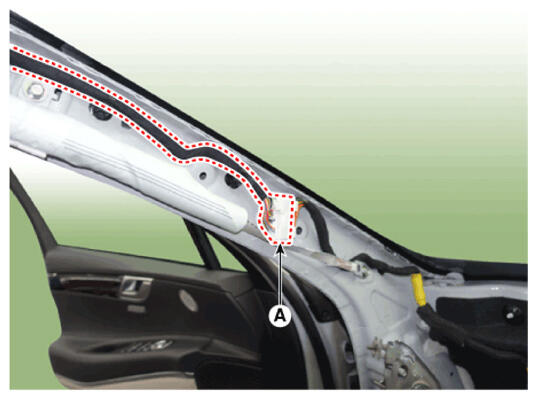

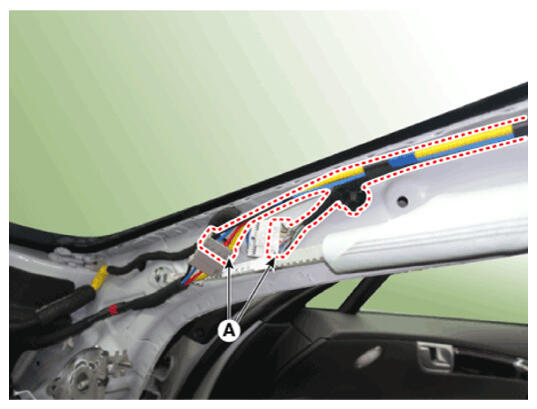

  9. Disconnect the connector (A) and the mounting wiring fasteners in the front pillar.
    G16773916Courtesy of HYUNDAI MOTOR AMERICA
    G16773917Courtesy of HYUNDAI MOTOR AMERICA

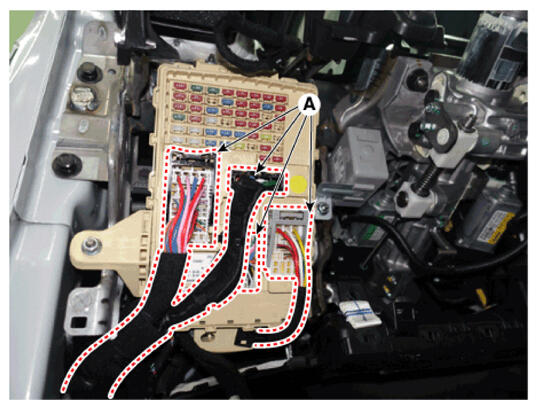

  10. Separate the passenger compartment junction box connectors (A).
    G16773918Courtesy of HYUNDAI MOTOR AMERICA

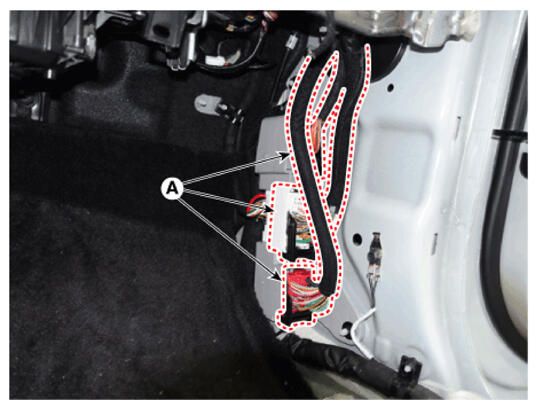

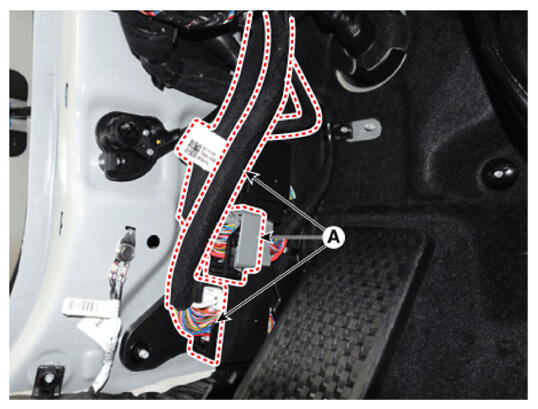

  11. Separate the multi box connectors (A).
    G16773919Courtesy of HYUNDAI MOTOR AMERICA
    G16773920Courtesy of HYUNDAI MOTOR AMERICA

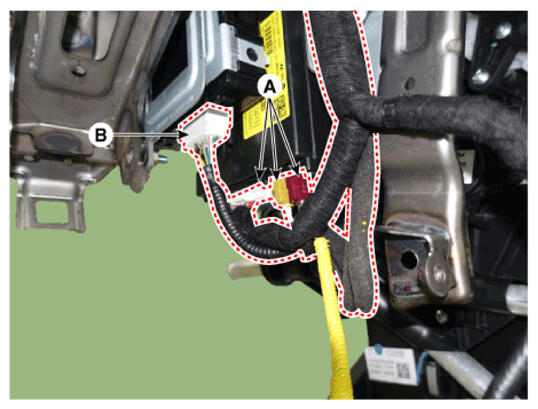

  12. Disconnect the eCall unit connectors (A) and tilt unit connector (B).
    G16773921Courtesy of HYUNDAI MOTOR AMERICA
  13. Separate the heater and blower unit connector.

    [Driver's]

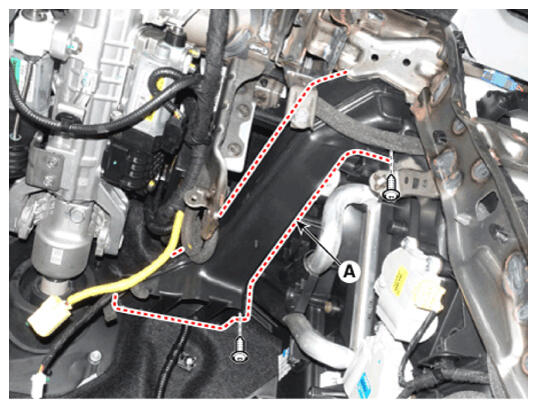

    1. Loosen the mounting screw, remove the shower duct (A).
      G16773922Courtesy of HYUNDAI MOTOR AMERICA

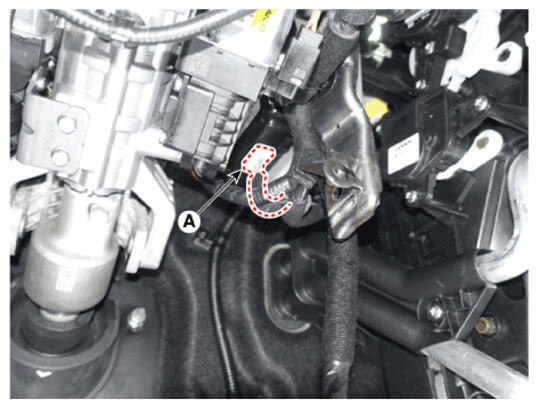

    2. Separate the IAU connector (A).
      G16773923Courtesy of HYUNDAI MOTOR AMERICA

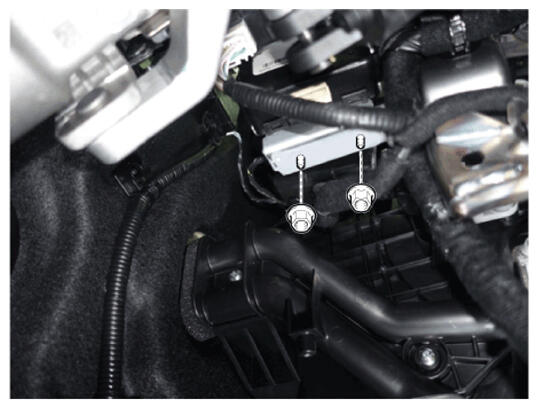

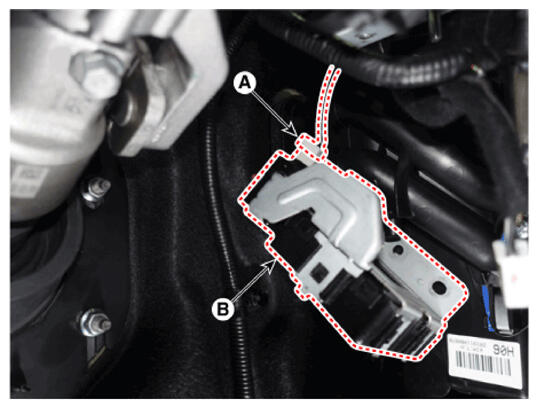

    3. Loosen the mounting nuts, and then remove the IAU connector (A) and then remove the IAU unit (B).
      G16773924Courtesy of HYUNDAI MOTOR AMERICA
      G16773925Courtesy of HYUNDAI MOTOR AMERICA

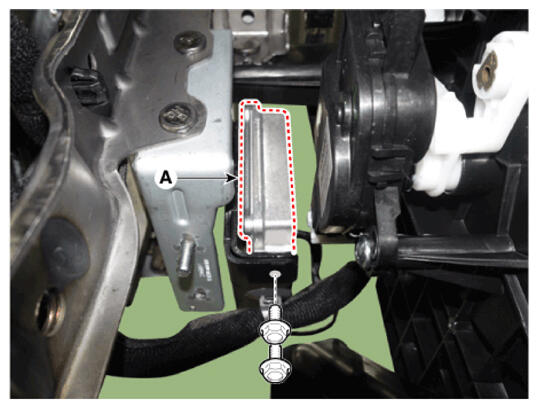

    4. Loosen the mounting bolts, remove the ADAS driving ECU (A).
      G16773926Courtesy of HYUNDAI MOTOR AMERICA

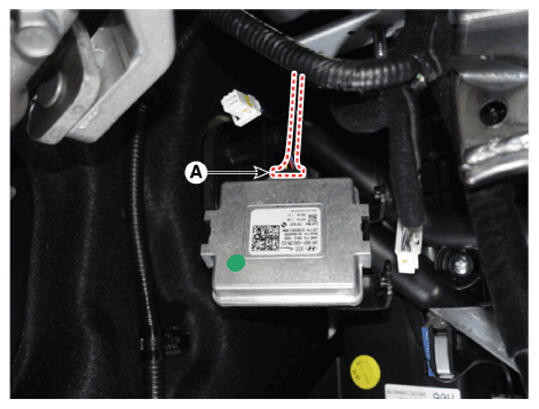

    5. Separate the ADAS driving ECU connector (A).
      G16773927Courtesy of HYUNDAI MOTOR AMERICA

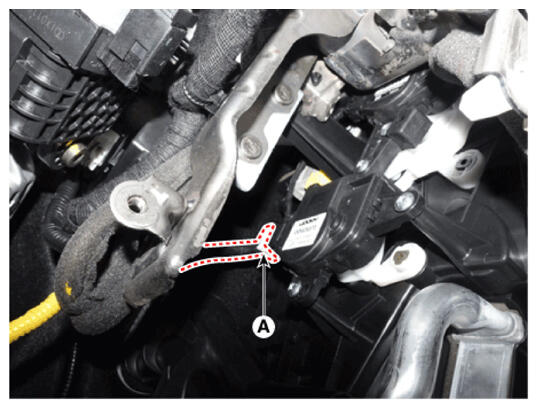

    6. Separate the temperature control actuator connector (A).
      G16773928Courtesy of HYUNDAI MOTOR AMERICA

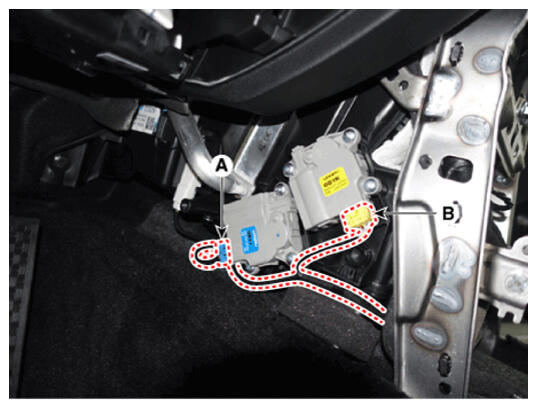

    7. Separate the console ON/OFF actuator connector (A) and console temperature control actuator connector (B).
      G16773929Courtesy of HYUNDAI MOTOR AMERICA

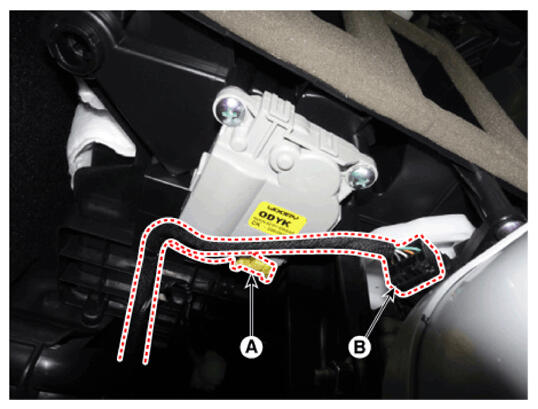

    8. temperature vent actuator connector (A) and mode control actuator (B).
    G16773930Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger's]

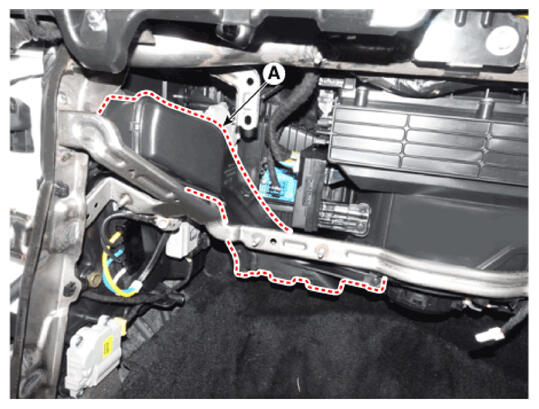

    1. Loosen the mounting screw, remove the shower duct (A).
      G16773931Courtesy of HYUNDAI MOTOR AMERICA

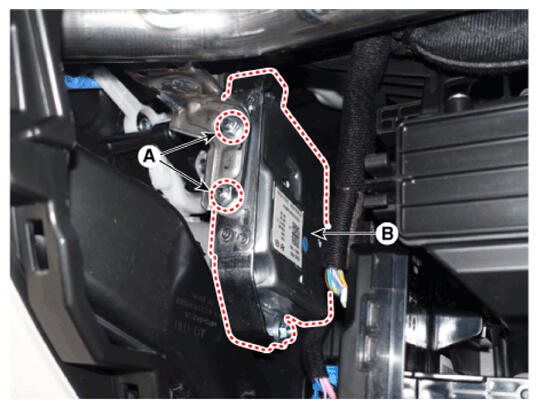

    2. Loosen the mounting nuts (A), remove the ADAS parking ECU (B).
      G16773932Courtesy of HYUNDAI MOTOR AMERICA

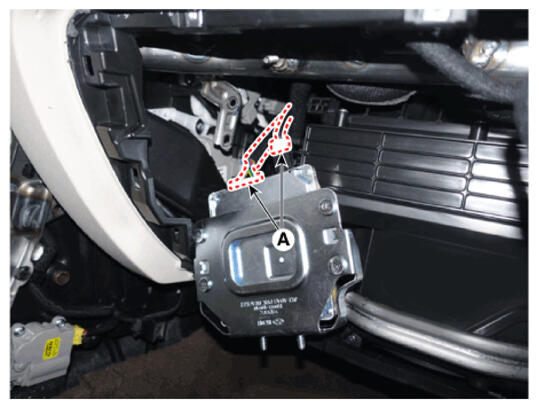

    3. Separate the ADAS parking ECU connector (A).
      G16773933Courtesy of HYUNDAI MOTOR AMERICA

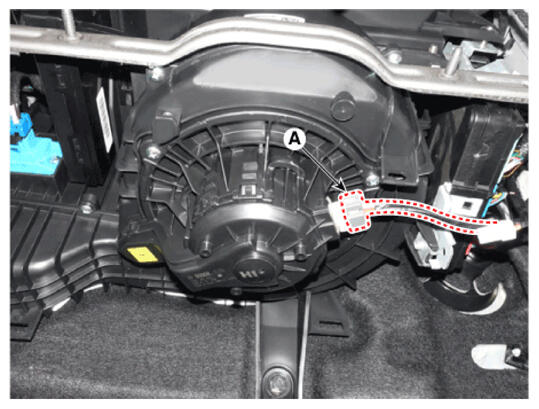

    4. Separate the blower motor connector (A).
      G16773934Courtesy of HYUNDAI MOTOR AMERICA

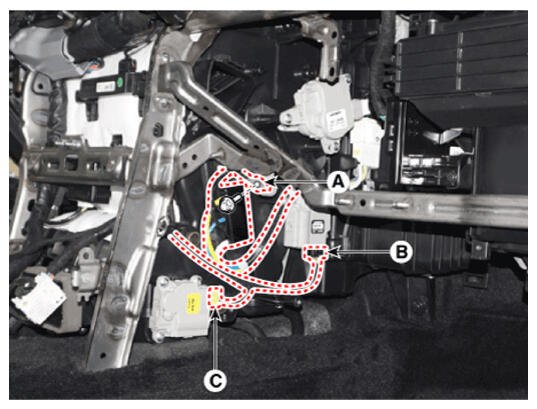

    5. Loosen the PTC heater mounting bolt (A), separate the console temperature actuator connector (B) and console mode actuator connector (C).
      G16773935Courtesy of HYUNDAI MOTOR AMERICA

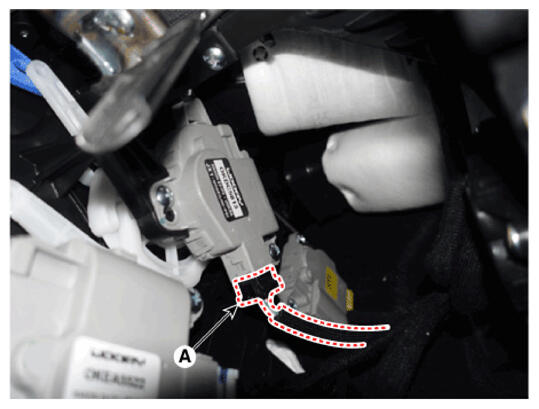

    6. Separate the mode actuator connector (A).
      G16773936Courtesy of HYUNDAI MOTOR AMERICA

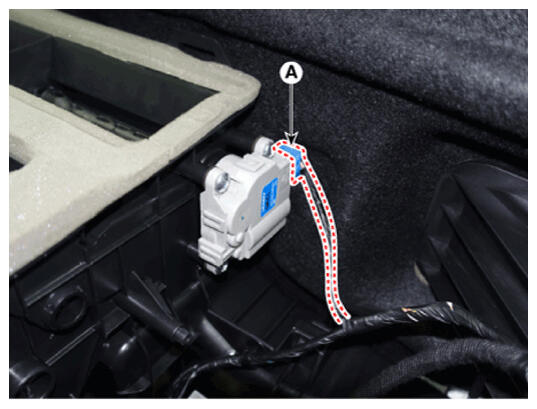

    7. Separate the auto defogging actuator connector (A).
      G16773937Courtesy of HYUNDAI MOTOR AMERICA

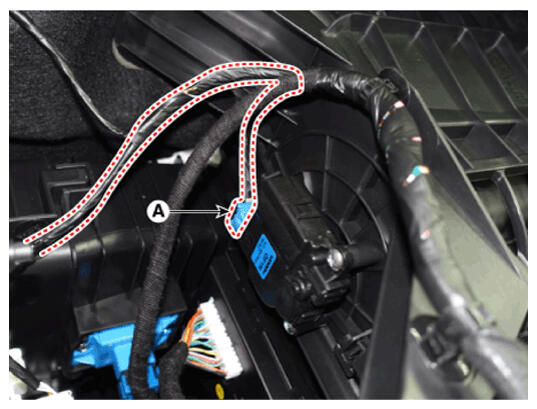

    8. Separate the intake actuator connector (A).
      G16773938Courtesy of HYUNDAI MOTOR AMERICA

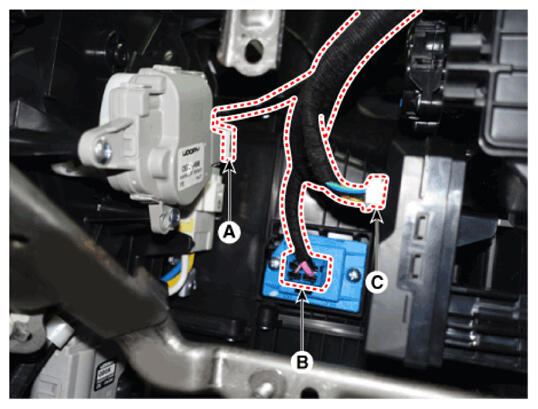

    9. Separate the temperature actuator connector (A), power mosfet connector (B) and heater control unit connector (C).
      G16773939Courtesy of HYUNDAI MOTOR AMERICA

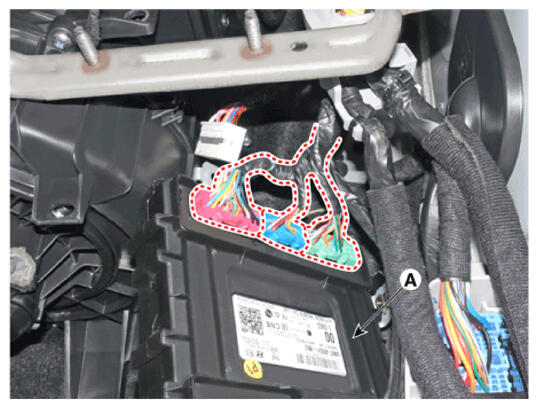

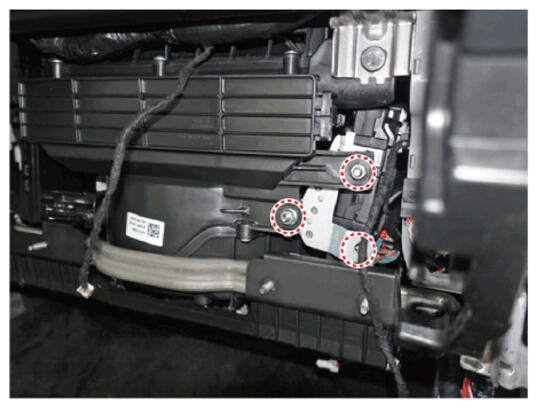

    10. Loosen the IBU mounting bolts, separate the connector and then remove the IBU (A).
      G16773940Courtesy of HYUNDAI MOTOR AMERICA
      G16773941Courtesy of HYUNDAI MOTOR AMERICA

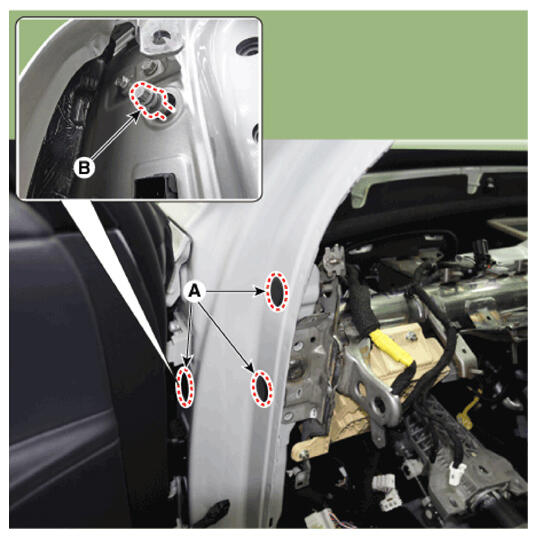

  14. Remove the plug hole (A) and then loosen the mounting bolts (B).

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

    G16773942Courtesy of HYUNDAI MOTOR AMERICA

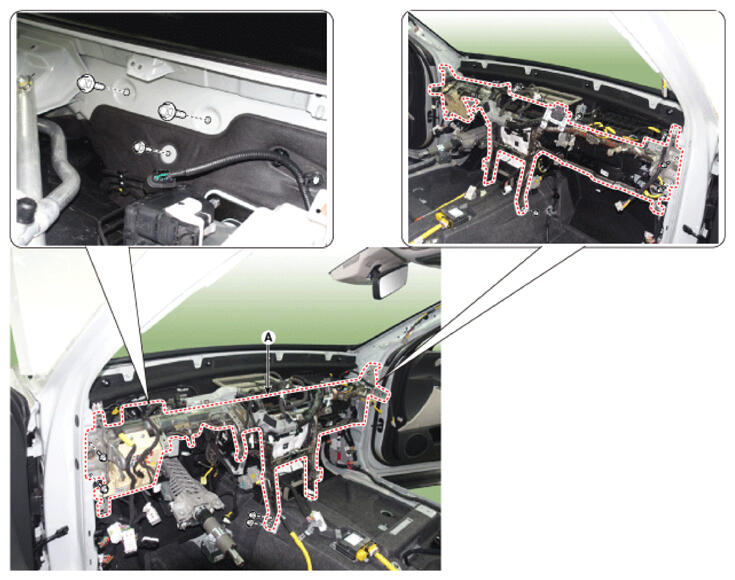

  15. Loosen the mounting bolts, nuts and remove the cowl cross bar assembly (A).

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

    G16773943Courtesy of HYUNDAI MOTOR AMERICA
  16. To install, reverse removal procedure.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-typ retainers).
