Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

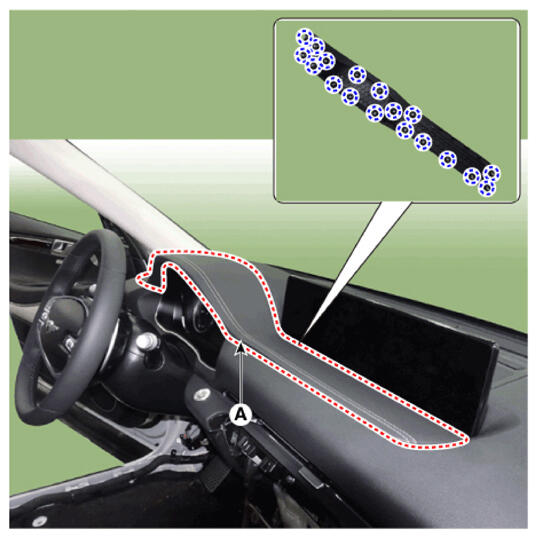

  2. Using a remover, remove the cluster fascia upper garnish (A).
    G16774591Courtesy of HYUNDAI MOTOR AMERICA

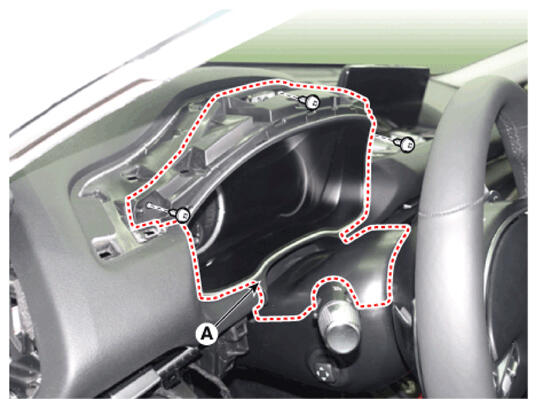

  3. Loosen the mounting screws and remove the cluster fascia panel (A).
    G16774592Courtesy of HYUNDAI MOTOR AMERICA

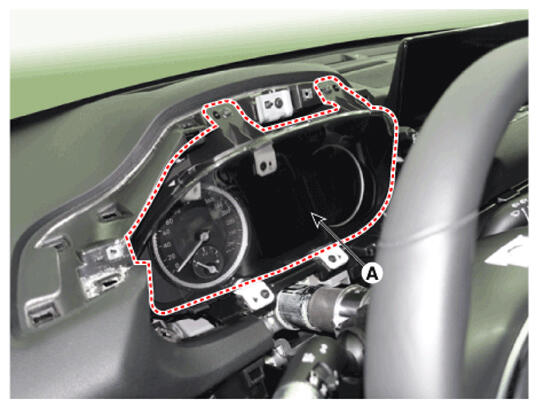

  4. Remove the cluster (A) after loosening mounting screws.
    G16774593Courtesy of HYUNDAI MOTOR AMERICA

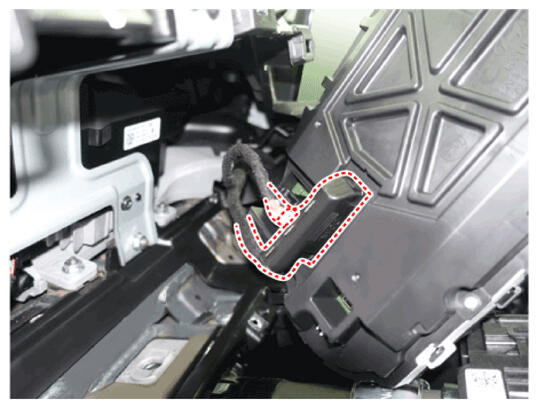

  5. Disconnect the cluster connector.
    G16774594Courtesy of HYUNDAI MOTOR AMERICA
