Oil Hydraulic Motor (Actuator): Removal

Remove the transfer case assembly.
(Refer to 4 Wheel Drive (AWD) System - "TRANSFER CASE ASSEMBLY ")

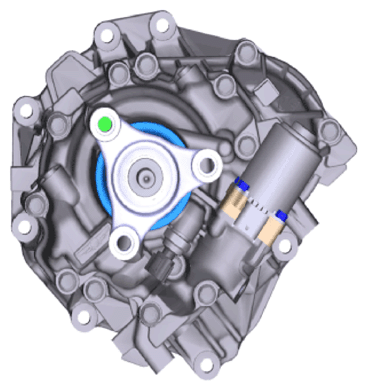

Tilt the removed transfer case assembly to 45° as shown in the below illustration.

CAUTION:

Keep going 45° state during remove (install) the oil hydraulic motor.

Courtesy of HYUNDAI MOTOR AMERICA

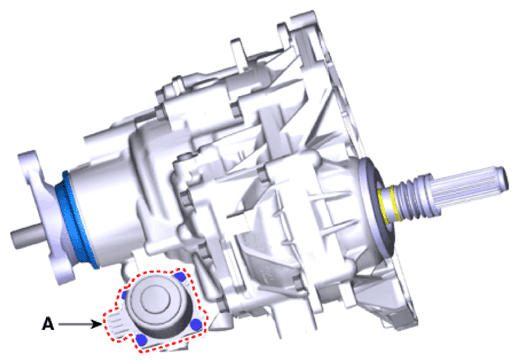

Loosen the bolt and then remove the oil hydraulic motor (A).
Tightening torque:

11.2 - 11.4 N.m (1.14 - 1.16 kgf.m, 8.2 - 8.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

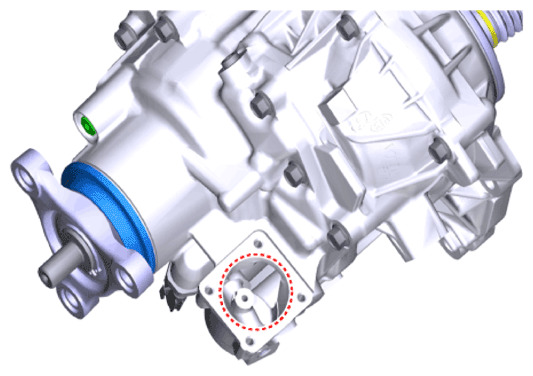

Remove the hydraulic motor after dropping residual oil as much as possible inside the transfer case assembly. (about 5 - 10 sec)

Courtesy of HYUNDAI MOTOR AMERICA
